SPI Communication Protocol: A Comprehensive Guide to Serial Peripheral Interface

The SPI is a protocol for synchronous serial communication developed by Motorola. It allows for full-duplex communication between two or more devices, which can be designated as either a master or a slave. Although it is possible to have multiple masters and slaves in an SPI link, it is uncommon to have more than one master.

History of Serial Peripheral Interface (SPI) Protocol

The Serial Peripheral Interface (SPI) protocol was developed by Motorola in the late 1970s as a means of communication between microcontrollers and peripheral devices. It was designed to be a simple and efficient protocol for transferring data between devices.

SPI was first introduced in the Motorola 6800 microprocessor as a means of communication between the processor and external devices. It was later used in other microprocessors and microcontrollers, and has since become a widely used protocol for communication between microcontrollers and peripheral devices.

In the early 1990s, the SPI protocol was standardized by the Joint Electron Device Engineering Council (JEDEC), an industry group that sets standards for the design and manufacture of electronic devices. The standardization of the protocol helped to increase its adoption and make it a widely used communication protocol in the electronics industry.

Today, the SPI protocol is used in a wide variety of applications, including industrial control, consumer electronics, and automotive systems. It is a popular choice for communication between microcontrollers and peripheral devices due to its simplicity and efficiency.

Features of Serial Peripheral Interface (SPI)

The Serial Peripheral Interface (SPI) is a synchronous serial communication protocol that allows devices to communicate with each other over short distances. Here are some of the key features of the SPI protocol:

1. Master-Slave Architecture: In SPI, one device acts as the master and initiates the communication, while the other device acts as the slave and responds to the master’s requests.
2. Multi-Master: SPI also can be used as a Multi-Master mode by using the separate CS wire each slave with the help of MSP.
3. Multiple Slaves: SPI supports communication with multiple slave devices on the same bus. Each slave is selected using a separate chip select (CS) line.
4. Full-Duplex Communication: SPI allows for full-duplex communication, which means that data can be transmitted and received at the same time.
5. Synchronous Communication: SPI is a synchronous protocol, meaning that the master and slave devices must be synchronized to a common clock signal. The clock signal is generated by the master and is used to synchronize the transmission and reception of data.
6. Variable Cata Length: SPI supports variable-length data transmissions, ranging from 4 to 16 bits per transfer.
7. Configurable Clock Frequency: The clock frequency of SPI can be configured to different values depending on the requirements of the system.
8. Simple Hardware Requirements: SPI is relatively simple to implement, as it requires only a few hardware lines (clock, data in, data out, and chip select) for communication.
9. Low Power Consumption: Because SPI uses a synchronous communication protocol, it can operate at lower clock frequencies, reducing power consumption.
10. Limited Distance: SPI is intended for short-distance communication and is typically used for communication within a single printed circuit board (PCB) or between PCBs within a small device.

Serial Peripheral Interface (SPI) BUS Interface

An SPI bus is a communication interface that uses the Serial Peripheral Interface (SPI) protocol to transfer data between devices. It consists of a master device and one or more slave devices that are connected together using four wires:

• MOSI (Master Out Slave In).
• MISO (Master In Slave Out).
• SCK (Serial Clock).
• SS/CS/CE (Slave Select/Chip Select/Chip Enable).

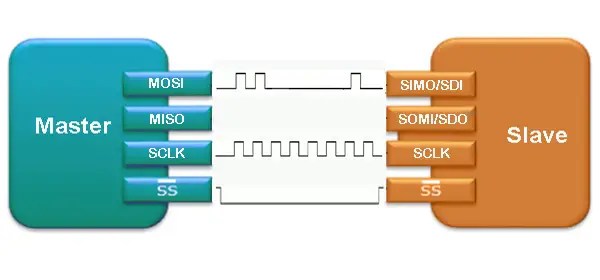

MOSI in Serial Peripheral Interface (SPI) Protocol

MOSI stands for Master Out Slave In, and it is a wire used in the Serial Peripheral Interface (SPI) protocol for communication between a master device and a slave device. The MOSI wire carries data from the master to the slave.

In an SPI bus, the master device controls the communication and selects the slave device to communicate with by pulling the SS (Slave Select) line low. The master can then send data to the slave using the MOSI line and receive data from the slave using the MISO (Master In Slave Out) line. The SCK (Serial Clock) line is used to synchronize the data transfer between the master and slave.

The MOSI line is used to transmit data from the master to the slave. The slave receives the data on the MOSI line and processes it according to the commands and data sent by the master.

The MOSI line is an important part of the SPI communication protocol, as it allows the master to send data to the slave and control the slave’s behavior.

MISO in Serial Peripheral Interface (SPI) Protocol

MISO stands for Master In Slave Out, and it is a wire used in the Serial Peripheral Interface (SPI) protocol for communication between a master device and a slave device. The MISO wire carries data from the slave to the master.

In an SPI bus, the master device controls the communication and selects the slave device to communicate with by pulling the SS (Slave Select) line low. The master can then send data to the slave using the MOSI (Master Out Slave In) line and receive data from the slave using the MISO line. The SCK (Serial Clock) line is used to synchronize the data transfer between the master and slave.

The MISO line is used to transmit data from the slave to the master. The master receives the data on the MISO line and processes it according to the commands and data sent by the slave.

The MISO line is an important part of the SPI communication protocol, as it allows the slave to send data back to the master and respond to the master’s commands.

SCK Line in Serial Peripheral Interface (SPI) Protocol

SCK stands for Serial Clock, and it is a wire used in the Serial Peripheral Interface (SPI) protocol for communication between a master device and a slave device. The SCK line carries the clock signal, which is used to synchronize data transfer between the master and slave.

In an SPI bus, the master device controls the communication and selects the slave device to communicate with by pulling the SS (Slave Select) line low. The master can then send data to the slave using the MOSI (Master Out Slave In) line and receive data from the slave using the MISO (Master In Slave Out) line. The SCK line is used to synchronize the data transfer between the master and slave.

The SCK line is generated by the master device and is used to synchronize the data transfer between the master and slave. The master sends data to the slave on the MOSI line, and the slave receives the data on the MISO line. The data transfer is synchronized using the SCK line, which ensures that the data is received and transmitted at the correct time.

The SCK line is an important part of the SPI communication protocol, as it helps to ensure that the data transfer is accurate and reliable.

CS / SS/CE Line In Serial Peripheral Interface (SPI) Protocol

The chip select (CS) line, also known as the slave select (SS) line or Chip Enable, is a wire used in the Serial Peripheral Interface (SPI) protocol for communication between a master device and a slave device. The CS line is used to select a specific slave device for communication with the master.

In an SPI bus, the master device controls the communication and selects the slave device to communicate with by pulling the CS line low. The master can then send data to the slave using the MOSI (Master Out Slave In) line and receive data from the slave using the MISO (Master In Slave Out) line. The SCK (Serial Clock) line is used to synchronize the data transfer between the master and slave.

Each slave device in an SPI bus has its own CS line, which is used to select it for communication with the master. The master can communicate with multiple slave devices by selecting each slave device in turn and sending or receiving data over the MOSI and MISO lines.

The CS line is an important part of the SPI communication protocol, as it allows the master to select a specific slave device for communication and ensures that data is transferred only between the master and the selected slave.

Clock Polarity and Phase in Serial Peripheral Interface (SPI) protocol

There are several different types of the Serial Peripheral Interface (SPI) protocol, which are defined by the way data is transferred between the master and slave devices. Here are three common types of SPI protocols:

CPOL	CPHA	MODE
0	0	MODE0 (Non-Inverted)
0	1	MODE1 (Non-Inverted)
1	0	MODE2 (Inverted)
1	1	MODE3 (Inverted)

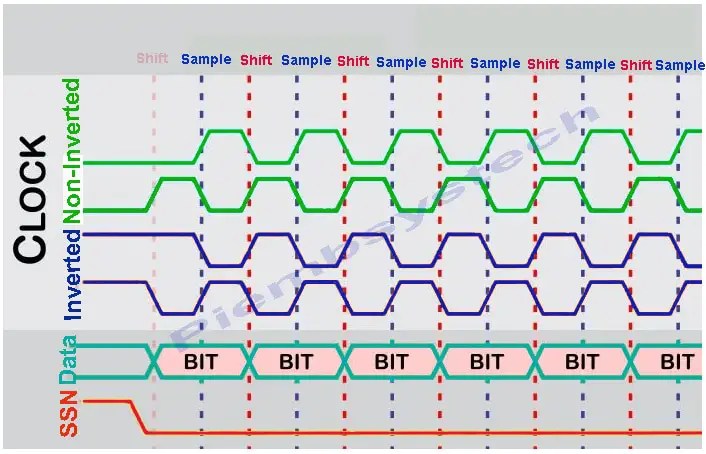

Inthe belwo image, the Bits that are sampled on the rising edge of the clock cycle are shifted out on the falling edge of the clock cycle, and vice versa.

1. Mode 0: In this mode, the clock polarity (CPOL) is set to 0 and the clock phase (CPHA) is set to 0. This means that the data is sampled on the leading edge of the clock signal (when the clock transitions from low to high) and the data is output on the falling edge of the clock (when the clock transitions from high to low).
2. Mode 1: In this mode, the CPOL is set to 0 and the CPHA is set to 1. This means that the data is sampled on the trailing edge of the clock (when the clock transitions from high to low) and the data is output on the rising edge of the clock (when the clock transitions from low to high).
3. Mode 2: In this mode, the CPOL is set to 1 and the CPHA is set to 0. This means that the data is sampled on the leading edge of the clock and the data is output on the rising edge of the clock.
4. Mode 3: In this mode, the CPOL is set to 1 and the CPHA is set to 1. This means that the data is sampled on the trailing edge of the clock and the data is output on the falling edge of the clock.

The specific mode that is used depends on the requirements of the specific application and the devices that are communicating with each other.

Different types of Modes of Configuration in Serial Peripheral Interface (SPI) Protocol

• Single-Master & Single-Slave Communication.
• Single-Master & Multi-Slave Communication.
  • Star Bus.
  • Daisy-Chain Bus.
• Multi-Master & Single-Slave Communication.
• Multi-Master & Multi-Slave Communication.

Single- Master & Single-Slave Interface in Serial Peripheral Interface (SPI) Protocol

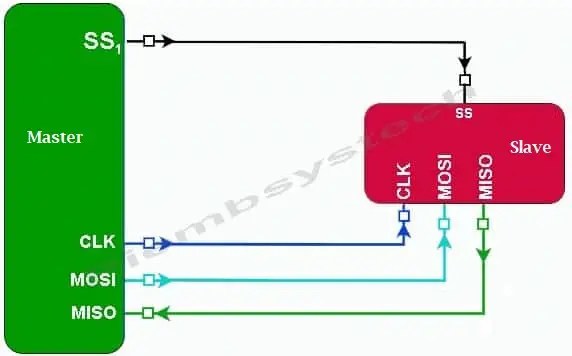

In a Single-Master Single-Slave Interface in Serial Peripheral Interface (SPI), there is only one master device communicating with one slave device. The master device controls the timing and data transfer of the communication, while the slave device only responds to the commands and data sent by the master.

In this configuration, the communication usually starts with the master device sending a clock signal to the slave device. The clock signal synchronizes the data transfer between the two devices. The master device also sends a command to the slave device, indicating what operation it wants to perform.

The slave device receives the command from the master device and responds with the appropriate data. The master device then reads the data and the communication is complete.

It’s important to note that the SPI communication protocol does not define any specific format for the data being transferred. Therefore, the format of the data being transmitted between the two devices must be agreed upon by both the master and the slave devices.

Single-Master & Multi-Slave Interface in Serial Peripheral Interface (SPI)

In a Single-Master Multi-Slave Interface in Serial Peripheral Interface (SPI) Protocol, there is a single master device communicating with multiple slave devices. The master device controls the timing and data transfer of the communication, and selects which slave device to communicate with at any given time.

In this configuration, the master device sends a clock signal to all the slave devices simultaneously. However, only one slave device can communicate with the master device at any given time, and the other slave devices must remain inactive.

To select which slave device to communicate with, the master device uses a Chip Select (CS) signal. Each slave device has a separate CS signal, which is used to enable or disable the communication between the master and that particular slave device. The master device can select which slave device to communicate with by activating its corresponding CS signal while deactivating the CS signals of the other slave devices.

Once the master device has selected a slave device, it sends a command to that device, indicating what operation it wants to perform. The slave device receives the command from the master device and responds with the appropriate data.

After the communication with a particular slave device is complete, the master device can deactivate its CS signal and activate the CS signal of another slave device to communicate with it. The master device can communicate with all the slave devices in a similar manner, switching between them as required.

It’s important to note that in a Single-Master Multi-Slave Interface in SPI, all slave devices share the same clock signal and data lines. Therefore, it’s important to ensure that the timing and data formats are compatible between all the slave devices and the master device.

Multi-Master & Single-Slave Interface in Serial Peripheral Interface (SPI)

A Multi-Master & Single-Slave Interface in Serial Peripheral Interface (SPI) Protocol is a configuration where multiple master devices communicate with a single slave device. In this configuration, each master device can initiate a communication with the slave device independently, but only one master device can communicate with the slave device at any given time.

In this configuration, each master device sends its own clock signal to the slave device. The clock signals from different master devices may have different frequencies or phases, and the slave device must be able to handle all of them.

To enable the communication between a master device and the slave device, the master device uses a Chip Select (CS) signal. The CS signal is used to select the slave device and indicate to other master devices that the communication channel is occupied. When a master device activates its CS signal, it becomes the active master, and all other master devices must deactivate their CS signals.

Once the communication is established, the master device sends a command to the slave device, indicating what operation it wants to perform. The slave device receives the command from the active master device and responds with the appropriate data.

After the communication between the active master device and the slave device is complete, the active master device deactivates its CS signal, and another master device can activate its CS signal to communicate with the slave device.

It’s important to note that in a Multi-Master & Single-Slave Interface in SPI, the communication protocol must be well-defined to prevent conflicts between different master devices. The timing, data format, and CS signal management must be synchronized and agreed upon by all the master devices and the slave device.

Multi-Master & Multi-Slave Interface in Serial Peripheral Interface (SPI)

In a Multi-Master and Multi-Slave Interface in Serial Peripheral Interface (SPI) Protocol, multiple master devices and multiple slave devices communicate with each other in a shared bus. Each master device can initiate communication with any of the slave devices, and multiple master devices and slave devices can communicate with each other simultaneously.

In this configuration, each master device sends its own clock signal to the bus, and all slave devices receive the clock signals from all master devices. All master devices and slave devices share the same data lines, and it’s up to each device to identify and process the data intended for it.

To enable the communication between a master device and a slave device, the master device uses a Chip Select (CS) signal to select the slave device. Each slave device has its own CS signal, which is activated by the master device to indicate the beginning of a communication. The CS signals of multiple slave devices can be active at the same time, allowing multiple communication channels to be established simultaneously.

In a Multi-Master and Multi-Slave Interface in SPI Protocol, collisions can occur when multiple master devices attempt to communicate with the same slave device at the same time. To prevent collisions, a protocol for collision detection and resolution must be implemented. One common method is to use an arbitration scheme, where each master device is assigned a priority level, and the device with the highest priority is allowed to communicate first.

It’s important to note that in a Multi-Master and Multi-Slave Interface in SPI, the communication protocol must be well-defined to prevent conflicts and ensure data integrity. The data format, timing, CS signal management, and collision resolution scheme must be synchronized and agreed upon by all the master devices and slave devices.

How To Interface with Serial Peripheral Interface (SPI) Protocol

To interface with the Serial Peripheral Interface (SPI) protocol, you will need:

1. A microcontroller or host device that supports the SPI protocol. This will be the master device in the communication.
2. One or more peripheral devices that support the SPI protocol. These will be the slave devices in the communication.
3. Four wires to connect the master and slave devices: MOSI (Master Out Slave In), MISO (Master In Slave Out), SCK (Serial Clock), and SS (Slave Select).

To begin communication, the master device will configure the SPI protocol according to the specific mode that is being used (e.g., Mode 0, Mode 1, etc.). The master will then select the slave device to communicate with by pulling the SS line low. The master will then send data to the slave using the MOSI line and receive data from the slave using the MISO line. The SCK line is used to synchronize the data transfer between the master and slave.

Once communication is complete, the master can deselect the slave device by pulling the SS line high, which ends the communication.

It is important to note that the specific steps for interfacing with the SPI protocol will depend on the specific microcontroller and peripheral devices that are being used. Consult the documentation for these devices for more information on how to interface with the SPI protocol.

Working Principle of Serial Peripheral Interface (SPI) Protocol

In the SPI protocol, data is exchanged in a full-duplex manner, meaning that both the master and slave devices can send and receive data simultaneously.

Initialization (Step1): The master device initializes the SPI communication by setting the necessary configuration parameters such as clock frequency, data order (MSB or LSB first), and clock polarity (CPOL) and phase (CPHA). The clock signal defines the timing of the data exchange and is sent from the master device to the slave device.

Slave selection (Step2): The master device selects the slave device with which it wants to communicate by setting the appropriate slave select (SS) line to low.

Data transfer (Step3): The master device sends data to the slave device by shifting out the data on the MOSI (Master Out Slave In) line while simultaneously shifting in data from the MISO (Master In Slave Out) line. The clock signal generated by the master device determines the timing of the data transfer. The slave device receives the data on the MOSI line and sends back its response on the MISO line.

The data is transmitted in a binary format, with each bit being sent sequentially, starting with the most significant bit. The number of bits transmitted is usually configurable, and can range from 4 bits up to 16 or 32 bits.

Slave Se-selection (Step4): Once the data transfer is complete, the master device de-selects the slave device by setting the SS line back to high.

After the data exchange is complete, the master device deactivates the CS signal, indicating to the slave device that the communication has ended.

Repeat: The master device can repeat steps 2-4 to communicate with other slave devices on the same SPI bus.

The SPI protocol also allows for a variety of configuration options, such as setting the clock frequency, the clock polarity, and the clock phase. These options must be set the same way for both the master and slave devices to ensure proper communication as per description above in Configuration Phase.

Applications Of Serial Peripheral Interface (SPI) Protocol

The Serial Peripheral Interface (SPI) protocol is a widely used communication protocol for transferring data between microcontrollers and peripheral devices. It is a simple and efficient protocol that is well suited for a variety of applications.

Some common applications of the SPI protocol include:

1. Industrial Control: SPI is used in a variety of industrial control applications, such as factory automation and process control.
2. Consumer Electronics: SPI is used in many consumer electronics products, such as smartphones, tablets, and laptops, to communicate with sensors, displays, and storage devices.
3. Automotive Systems: SPI is used in a variety of automotive applications, including engine control, infotainment systems, and advanced driver assistance systems (ADAS).
4. Medical Devices: SPI is used in medical devices, such as heart rate monitors and blood glucose meters, to communicate with sensors and other peripheral devices.
5. Internet of Things (IoT) Devices: SPI is used in many IoT devices, such as smart home devices and wearable technology, to communicate with sensors and other peripheral devices.
6. Data Storage: SPI is used in data storage devices, such as solid-state drives (SSDs), to communicate with the host device.

In general, the SPI protocol is a versatile and widely used communication protocol that is suitable for a variety of applications.

Advantages of Serial Peripheral Interface (SPI) Protocol

There are several advantages to using the Serial Peripheral Interface (SPI) protocol for communication between microcontrollers and peripheral devices:

1. Simplicity: The SPI protocol is relatively simple and easy to implement, which makes it an attractive choice for many applications.
2. Efficiency: The SPI protocol is a full-duplex protocol, which means that data can be transmitted and received simultaneously. This makes it an efficient protocol for transferring data between devices.
3. Versatility: The SPI protocol can be used with a wide range of devices, including sensors, displays, and storage devices. It is also widely supported by microcontrollers and other electronics components.
4. High speed: The SPI protocol can operate at high speeds, making it suitable for applications that require fast data transfer.
5. Low cost: The SPI protocol requires only four wires for communication, which makes it a cost-effective solution for many applications.

Overall, the SPI protocol is a simple, efficient, and versatile communication protocol that is widely used in a variety of applications.

Disadvantages of Serial Peripheral Interface (SPI) Protocol

Although the Serial Peripheral Interface (SPI) protocol has several advantages, it also has some disadvantages that may make it less suitable for certain applications:

1. Limited number of devices: The SPI protocol is limited to communication between a single master device and up to four slave devices. This may not be sufficient for applications that require communication with a larger number of devices.
2. Complexity of multi-master systems: If multiple master devices are required in a system, the SPI protocol can become complex and more difficult to implement.
3. Limited distance: The SPI protocol is not designed for long-distance communication, as the wires used for communication are limited in length.
4. Limited data transfer: The SPI protocol is limited to transferring a single byte of data at a time, which may not be sufficient for some applications that require larger amounts of data to be transferred.
5. Security concerns: The SPI protocol does not have built-in security features, which may be a concern for applications that require secure communication.

Overall, the SPI protocol is a simple and efficient communication protocol, but it may not be suitable for all applications due to its limitations.
