Revolutionizing Aviation Safety: The Power of Automatic Dependent Surveillance – Broadcast (ADS-B)

Hello, and welcome to my blog! Today, I’m going to talk about a fascinating topic: Automatic Dependent Surveillance – Broadcast (ADS-B). If you are intere

sted in aviation, you might have heard of this technology before. But what exactly is it and how does it work? Let’s find out!

Automatic Dependent Surveillance – Broadcast (ADS-B) has emerged as a game-changing technology in the aviation industry, revolutionizing the way aircraft communicate and share critical information. With its ability to provide real-time data transmission and precise tracking, ADS-B is transforming air traffic management and significantly enhancing situational awareness for pilots, air traffic controllers, and ground personnel.

Introduction to Automatic Dependent Surveillance – Broadcast (ADS-B)

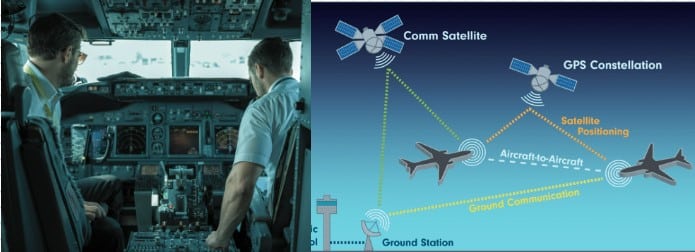

ADS-B is a surveillance technology that uses GPS or GNSS to broadcast an aircraft’s position, velocity, identification, and other data to air traffic controllers and other aircraft. ADS-B is more precise than radar and supports the modernization of the airspace. ADS-B consists of two services: ADS-B Out, which transmits the data, and ADS-B In, which receives the data. ADS-B uses PPM to transmit data in messages carrying 10 bytes of data each. ADS-B broadcasts once per second.

ADS-B is being incorporated in various jurisdictions worldwide. It is an element of the United States Next Generation Air Transportation System (NextGen), the Airports Authority of India upgrade plans in line with the ICAO Global Plan Initiatives and Aviation System Block Upgrade (ASBU), and the Single European Sky ATM Research project (SESAR) . ADS-B equipment is mandatory for instrument flight rules (IFR) category aircraft in Australian airspace; the United States has required many aircraft (including all commercial passenger carriers and aircraft flying in areas that required a transponder) to be so equipped since January 2020; and, the equipment has been mandatory for some aircraft in Europe since 2017 .

ADS-B enhances safety by making an aircraft visible, realtime, to air traffic control (ATC) and to other appropriately equipped ADS-B aircraft with position and velocity data transmitted every second. ADS-B data can be recorded and downloaded for post-flight analysis. ADS-B also provides the data infrastructure for inexpensive flight tracking, planning, and dispatch . In addition, ADS-B can provide traffic- and government-generated graphical weather information at no cost through TIS-B and FIS-B applications . ADS-B also enables advanced applications for pilots and controllers alike, such as merging and spacing for arrivals, conflict detection and resolution, surface movement management, etc .

As you can see, ADS-B is a revolutionary technology that has many benefits for aviation safety and efficiency. It is also a form of Electronic Conspicuity, which means that it makes an aircraft more visible to others in the airspace. This can help prevent collisions and improve situational awareness. If you are a pilot or an aviation enthusiast, you might want to learn more about ADS-B and how it can improve your flying experience. I hope you enjoyed this blog post and learned something new. Thank you for reading!

History and Inventions of Automatic Dependent Surveillance – Broadcast (ADS-B)

Automatic Dependent Surveillance – Broadcast (ADS-B) is a surveillance technology used in aviation to enhance aircraft tracking and situational awareness. It relies on aircraft broadcasting their position, velocity, and other related information to ground stations and other aircraft equipped with ADS-B receivers. This enables real-time monitoring of aircraft movements, facilitating safer and more efficient air traffic management. Let’s delve into the history and key inventions of ADS-B.

1. Early Developments:
   • The concept of ADS-B emerged in the 1990s as a response to the limitations of radar-based surveillance systems. Radar coverage was limited, especially over oceans and remote areas, which led to challenges in tracking aircraft in those regions.
   • In 2001, the Federal Aviation Administration (FAA) in the United States initiated the Capstone Program in Alaska, which aimed to test the feasibility of ADS-B in a real-world environment. This program played a crucial role in shaping ADS-B technology. The installation of an Automatic Dependent Surveillance Broadcast (ADS-B) transponder enables aircraft to autonomously transmit their position and other relevant data, enhancing air traffic surveillance and situational awareness.
2. Mode S Transponders:
   • Mode S transponders, which became a fundamental component of ADS-B, were developed in the 1990s. They allowed aircraft to transmit additional data, such as aircraft identification and altitude, in response to Mode S radar interrogations.
   • Mode S transponders formed the basis for ADS-B Out, which refers to the ability of aircraft to autonomously broadcast their position and other information without relying on radar interrogations.
3. ADS-B Trials and Implementation:
   • Following successful trials in Alaska, the FAA started implementing ADS-B technology more widely. In 2007, the FAA selected the 978 MHz Universal Access Transceiver (UAT) as one of the ADS-B frequencies for use in the United States.
   • In Europe, the European Aviation Safety Agency (EASA) mandated the use of ADS-B for specific airspace classes starting from 2017. This mandate accelerated the deployment of ADS-B in Europe.
4. Key Inventions and Innovations:
   • ADS-B relies on several key inventions and innovations to function effectively. These include:
     • GPS (Global Positioning System): GPS provides accurate positioning information to aircraft, forming the basis for ADS-B surveillance.
     • Data Link: ADS-B utilizes data link technology to transmit information between aircraft and ground stations or other aircraft.
     • Transponder Technology: Mode S transponders and subsequent advancements in transponder technology enable aircraft to broadcast their data.
     • Ground Stations and Infrastructure: ADS-B ground stations receive aircraft broadcasts, process the data, and relay it to air traffic control centers for monitoring.
5. ADS-B In and ADS-B Out:
   • ADS-B In refers to the capability of aircraft to receive ADS-B broadcasts from other aircraft or ground stations. It enhances situational awareness by providing pilots with real-time information on nearby aircraft.
   • ADS-B Out refers to an aircraft’s ability to transmit its own position, velocity, and other data to other aircraft and ground stations. ADS-B Out is crucial for air traffic control and surveillance purposes.
6. Benefits and Future:
   • ADS-B offers several benefits, including improved aircraft tracking accuracy, reduced separation distances between aircraft, enhanced situational awareness, and increased safety.
   • The widespread adoption of ADS-B paves the way for more advanced air traffic management systems, such as Free Route Airspace, which allows aircraft to choose their optimal flight paths.
   • The future of ADS-B includes continued deployment and integration with other surveillance technologies, such as satellite-based ADS-B, to enhance global coverage and enable seamless tracking across the world’s airspace.

Architecture of Automatic Dependent Surveillance – Broadcast (ADS-B) Technology

Automatic Dependent Surveillance – Broadcast (ADS-B) is a surveillance technology used in aviation to enhance air traffic management and provide improved situational awareness for pilots and air traffic controllers. ADS-B relies on aircraft broadcasting their own position, velocity, and other relevant information periodically to nearby aircraft and ground stations.

The architecture of ADS-B technology involves three main components: the aircraft avionics, ground-based ADS-B receivers, and air traffic control systems. Let’s explore each component in detail:

1. Aircraft Avionics:
   • ADS-B Out: This component is installed on the aircraft and consists of a GPS receiver, a datalink transmitter, and associated avionics. The GPS receiver provides accurate position and velocity information, while the datalink transmitter broadcasts the information to nearby aircraft and ground stations. The ADS-B Out system periodically sends out ADS-B messages containing aircraft identification, position, altitude, velocity, and other data.
   • ADS-B In: Some aircraft are also equipped with ADS-B In capabilities, which allow them to receive ADS-B messages from other aircraft in the vicinity. ADS-B In systems display information about nearby aircraft, including their position, altitude, velocity, and identification, to the pilot. This helps pilots maintain situational awareness and avoid potential collisions.
2. Ground-Based ADS-B Receivers:
   • ADS-B ground stations or receivers are strategically placed on the ground to cover a specific area. These receivers consist of an antenna, a receiver, and associated processing equipment. They continuously listen for ADS-B messages transmitted by aircraft in their range.
   • When a ground-based receiver receives ADS-B messages, it decodes the information and sends it to the air traffic control system for further processing. The ground-based receivers also help in enhancing surveillance coverage in areas where radar coverage is limited or not available.
3. Air Traffic Control Systems:
   • The ADS-B messages received from aircraft by ground-based receivers are sent to air traffic control systems for processing and integration with other surveillance data.
   • Air traffic controllers can access the information provided by ADS-B, allowing them to monitor and manage aircraft more effectively. They can view the position, altitude, velocity, and identification of aircraft equipped with ADS-B Out, enabling better coordination and safer separation between aircraft.
   • The integrated data from ADS-B and other surveillance sources helps air traffic controllers make informed decisions, optimize traffic flow, and provide improved services to pilots and airlines.

How does Automatic Dependent Surveillance – Broadcast (ADS-B) Technology Works?

Automatic Dependent Surveillance – Broadcast (ADS-B) works by utilizing aircraft-based systems to autonomously broadcast aircraft position, velocity, and other related information to ground stations and other aircraft equipped with ADS-B receivers. Here’s a simplified overview of how ADS-B works:

1. Aircraft Equipped with ADS-B:
   • Aircraft equipped with ADS-B systems have onboard equipment that includes a GPS receiver, a data link transmitter, and an ADS-B transponder.
   • The GPS receiver determines the aircraft’s precise position, velocity, and altitude.
2. ADS-B Data Generation:
   • Using the GPS data, the ADS-B system generates a data packet known as an ADS-B message, which contains information about the aircraft.
   • The ADS-B message typically includes the aircraft’s unique identification (ICAO 24-bit address), position (latitude and longitude), altitude, velocity, heading, and other relevant data.
3. ADS-B Transmission:
   • The ADS-B system transmits the ADS-B message via the data link transmitter, which uses a designated frequency, such as 1090 MHz (Mode S) or 978 MHz (UAT), depending on the region and airspace requirements.
4. Reception by ADS-B Ground Stations:
   • ADS-B ground stations are strategically located to receive the ADS-B messages transmitted by aircraft within their coverage area.
   • The ground stations consist of ADS-B receivers that receive the transmitted ADS-B messages from aircraft.
5. Data Processing and Distribution:
   • The received ADS-B messages are processed by the ground stations, which extract the relevant information, such as the aircraft’s position, altitude, and velocity.
   • The processed data is then sent to air traffic control centers, where it is integrated into the air traffic management system.
   • Air traffic controllers use this real-time information to monitor and manage air traffic more efficiently and safely.
6. ADS-B In Capability:
   • Aircraft equipped with ADS-B In capability can receive ADS-B messages transmitted by other aircraft or ground stations.
   • The received ADS-B data is displayed on cockpit displays, providing pilots with real-time information about nearby aircraft, their positions, and other relevant details, enhancing situational awareness.

Advantages of Automatic Dependent Surveillance – Broadcast (ADS-B) Technology

Automatic Dependent Surveillance – Broadcast (ADS-B) technology offers several advantages that contribute to the safety, efficiency, and effectiveness of aviation operations. Here are some key advantages of ADS-B:

1. Enhanced Situational Awareness: ADS-B provides real-time information about nearby aircraft, their positions, altitudes, and velocities. This improves situational awareness for pilots, air traffic controllers, and other aircraft operating in the same airspace. It enables better decision-making, reduces the risk of mid-air collisions, and facilitates more effective traffic management.
2. Improved Aircraft Tracking Accuracy: ADS-B offers more accurate and reliable aircraft tracking compared to traditional radar systems. It provides continuous and precise position updates, allowing for more accurate monitoring of aircraft movements. This is particularly beneficial in areas with limited radar coverage, such as remote regions or over oceans.
3. Reduced Separation Distances: With ADS-B, air traffic controllers can safely reduce the separation distances between aircraft, known as separation standards. The accurate and real-time position information provided by ADS-B enables controllers to maintain safe separation while optimizing airspace utilization and capacity. This can lead to increased efficiency, reduced delays, and improved overall airspace capacity.
4. Lower Costs and Maintenance: ADS-B relies on onboard equipment that is typically lighter, more compact, and requires less maintenance compared to traditional radar systems. This can lead to cost savings for aircraft operators in terms of equipment installation, maintenance, and weight-related fuel consumption.
5. Seamless Surveillance Integration: ADS-B is designed to be compatible and interoperable with other surveillance systems. It can be integrated with radar systems, satellite-based surveillance, and ground-based automation systems, creating a more comprehensive and seamless surveillance network. This integration improves overall surveillance coverage, reliability, and redundancy.
6. Operational Flexibility: ADS-B enables the implementation of advanced air traffic management concepts, such as Free Route Airspace. This concept allows aircraft to choose more direct flight paths, reducing fuel consumption, emissions, and flight time. ADS-B facilitates the accurate tracking and monitoring necessary for these advanced operational procedures.
7. Global Harmonization: ADS-B has gained international recognition and acceptance, leading to global harmonization of surveillance standards. This allows for better coordination and interoperability between different regions and countries, enhancing the safety and efficiency of international air travel.
8. Support for New Technologies: ADS-B provides a foundation for the integration of emerging technologies and applications in aviation. It supports the development and implementation of future concepts such as unmanned aircraft systems (UAS), urban air mobility (UAM), and autonomous operations, enabling safe and efficient integration of these new technologies into airspace.

Disadvantages of Automatic Dependent Surveillance – Broadcast (ADS-B) Technology

While Automatic Dependent Surveillance – Broadcast (ADS-B) technology provides several advantages, there are also a few potential disadvantages to consider. These include:

1. Limited Coverage in Remote Areas: ADS-B relies on ground stations to receive and process the ADS-B messages transmitted by aircraft. In remote or sparsely populated areas, the availability of ground stations may be limited, resulting in reduced ADS-B coverage. This can lead to gaps in surveillance and less accurate tracking in those regions.
2. Vulnerability to Interference: ADS-B transmissions can be subject to interference from various sources, such as radio frequency interference, intentional jamming, or unintentional signal disruptions. These interferences can potentially impact the quality and reliability of ADS-B signals, affecting the accuracy of surveillance and situational awareness.
3. Privacy and Security Concerns: ADS-B broadcasts contain identifiable information about aircraft, including their unique identification codes. While ADS-B messages are not encrypted, they can be received by anyone equipped with an ADS-B receiver. This raises privacy concerns regarding the tracking and monitoring of aircraft by unauthorized individuals or organizations.
4. Cost of Equipment Installation: Implementing ADS-B technology requires aircraft operators to install ADS-B equipment, including transponders and data link transmitters, on their aircraft. This installation process can be costly, especially for older aircraft that may not have built-in ADS-B capabilities. The cost of retrofitting or upgrading the aircraft’s avionics systems can pose a financial burden for some operators.
5. Transition Period and Compatibility: During the transition period from traditional radar systems to ADS-B, both systems may need to coexist. This transition phase requires compatibility between ADS-B and legacy systems to ensure seamless integration and effective air traffic management. Ensuring compatibility and interoperability can be a complex and time-consuming process.
6. Reliance on Cooperative Aircraft: ADS-B relies on aircraft voluntarily broadcasting their data. If an aircraft does not have ADS-B Out capability or malfunctions occur in the ADS-B equipment, the surveillance system may not receive the necessary data, affecting the accuracy and completeness of the surveillance picture.
7. Cybersecurity Risks: As ADS-B relies on data transmission and communication between aircraft and ground systems, there is a potential cybersecurity risk. Unauthorized access or malicious attacks targeting ADS-B systems could lead to data manipulation, transmission disruption, or compromised surveillance integrity.

Future Development and Enhancement of Automatic Dependent Surveillance – Broadcast (ADS-B) Technology

The future development and enhancement of Automatic Dependent Surveillance – Broadcast (ADS-B) technology are focused on improving its capabilities, expanding its coverage, and integrating it with other advanced technologies. Here are some key areas of development:

1. Global Coverage: Efforts are underway to enhance the global coverage of ADS-B. This includes the deployment of additional ground stations in remote areas, over oceans, and in regions with limited surveillance infrastructure. The aim is to ensure seamless and continuous surveillance coverage worldwide, improving the tracking accuracy and situational awareness for all aircraft.
2. Satellite-Based ADS-B: Satellite-based ADS-B (S-ADS-B) is being developed to complement ground-based ADS-B systems. S-ADS-B utilizes a network of satellites to receive and relay ADS-B messages, enabling global coverage, including remote and oceanic areas where ground stations may be limited. Integrating satellite-based ADS-B with existing ground-based systems enhances surveillance redundancy and provides comprehensive coverage across the globe.
3. Cybersecurity and Data Integrity: With the increasing reliance on digital systems and data transmission, cybersecurity is a crucial aspect of ADS-B development. Efforts are being made to enhance the cybersecurity measures of ADS-B systems, ensuring secure data transmission, protection against unauthorized access, and robust authentication mechanisms. This helps safeguard the integrity of ADS-B data and maintains the trust and reliability of the system.
4. Integration with UAS and UAM: The integration of Unmanned Aircraft Systems (UAS) and Urban Air Mobility (UAM) operations into the airspace requires efficient surveillance capabilities. ADS-B is being enhanced to accommodate the unique requirements of UAS and UAM operations, ensuring safe and reliable integration. This includes developing ADS-B systems specifically designed for small drones and urban air vehicles, enabling seamless integration with crewed aircraft.
5. Spectrum Efficiency: ADS-B operates on specific frequencies, such as 1090 MHz (Mode S) or 978 MHz (UAT). There is ongoing research and development to optimize spectrum utilization and improve ADS-B’s efficiency. This includes exploring alternative frequencies and waveform designs that can maximize data transmission rates, minimize interference, and support higher traffic volumes.
6. Integration with Next-Generation Systems: ADS-B is an integral part of the transition to Next-Generation Air Traffic Management systems. It is being integrated with other technologies such as Automatic Dependent Surveillance – Contract (ADS-C), Controller-Pilot Data Link Communications (CPDLC), and Collaborative Decision Making (CDM). This integration enhances the overall surveillance and communication capabilities, enabling more efficient air traffic management and improving operational efficiency.
7. Advanced Applications and Decision Support: ADS-B data can be utilized for advanced applications and decision support tools. This includes the development of predictive analytics, machine learning algorithms, and automation systems that leverage ADS-B data to identify potential conflicts, optimize routing, and provide real-time decision support to pilots and air traffic controllers.
