Mastering the Arduino Mega 2560: Step-by-Step Instructions

Introduction to Mastering the Arduino Mega 2560: Step-by-Step Instructions

Welcome to the world of Arduino Mega 2560, Mastering the Arduino Mega 2560:

Step-by-Step Instructions, where creativity meets technology! As one of the most powerful microcontroller boards in the Arduino family, the Mega 2560 supports projects that demand greater complexity and versatility. With its 54 digital input/output pins, 16 analog inputs, and impressive processing capabilities, the Mega 2560 serves as an ideal choice for a wide range of applications, from intricate robotics to comprehensive home automation systems.

In this guide, we will take you on a journey to master the Arduino Mega 2560. Whether you’re a beginner eager to explore the basics or an experienced developer looking to enhance your skills, our step-by-step instructions will empower you to unlock the full potential of this remarkable board. We’ll cover everything from setting up your Mega 2560 and writing your first program to diving into exciting projects that will challenge and inspire you.

Get ready to transform your ideas into reality as we embark on this adventure into the world of Arduino Mega 2560. Let’s get started!

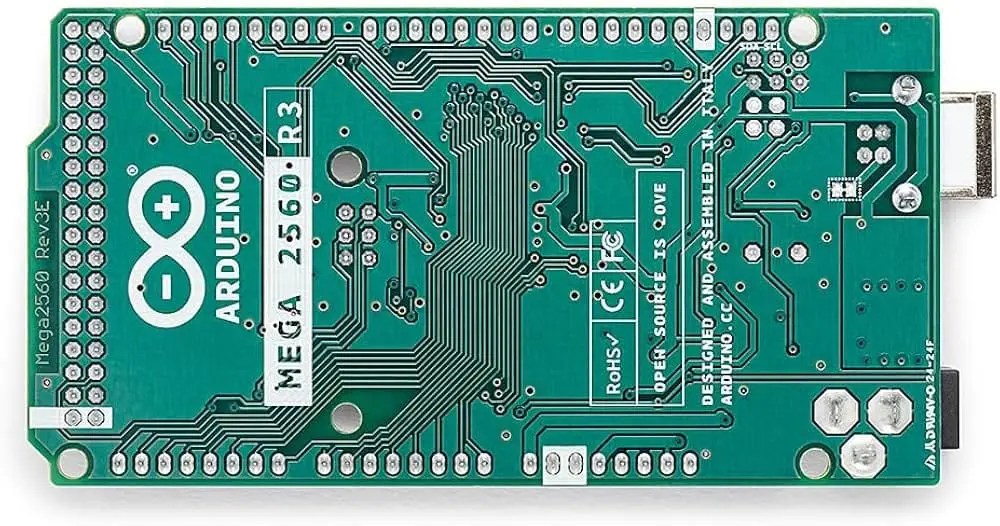

What is an Arduino Mega 2560?

The Arduino Mega 2560 offers versatility and power as a microcontroller board, commonly used in electronics projects, robotics, and IoT (Internet of Things) applications. Designed for handling more complex tasks than smaller Arduino boards, it serves as an ideal choice for projects needing a higher number of input and output pins, memory, and processing power.

Key Components and Specifications

1. Microcontroller:

The heart of the Arduino Mega 2560 is the ATmega2560 microcontroller. This 8-bit microcontroller features a robust architecture that allows it to perform tasks efficiently, making it suitable for applications that involve a lot of data processing or complex control.

2. Digital Input/Output Pins:

• The board is equipped with 54 digital I/O pins. These pins can be configured as either inputs or outputs. Out of these, 15 pins can be used for PWM (Pulse Width Modulation) output, which is essential for controlling the brightness of LEDs or the speed of motors.
• Digital pins can read signals (HIGH or LOW) or send signals to various components, such as sensors, motors, and LEDs.

3. Analog Input Pins:

The Mega 2560 has 16 analog input pins, allowing it to read signals from analog sensors (e.g., temperature sensors, light sensors) and convert them into digital values for processing. This capability is essential for applications where variable input is required.

4. Memory:

• The Mega 2560 features 256 KB of flash memory, of which 8 KB is used by the bootloader. This significant amount of memory allows for more extensive and complex programs compared to other Arduino boards like the Arduino Uno, which has only 32 KB of flash memory.
• Additionally, it has 8 KB of SRAM for variable storage during program execution and 4 KB of EEPROM for non-volatile storage, enabling data retention even when the board is powered off.

5. Clock Speed:

The board operates at a 16 MHz clock speed, which is standard for Arduino boards. This speed allows for quick processing of instructions and efficient execution of tasks.

6. Power Supply:

The Arduino Mega 2560 can be powered through a USB connection or an external power supply (typically between 7-12V). The board includes a voltage regulator that ensures a stable operating voltage of 5V for its components.

7. USB Connectivity:

A built-in USB port allows for easy connection to a computer, enabling users to upload code and communicate with the board during operation. This feature is essential for programming the board using the Arduino IDE (Integrated Development Environment).

Physical Characteristics

• The Arduino Mega 2560 measures approximately 4 x 2.1 inches (101.6 x 53.3 mm), making it larger than many other Arduino boards, which contributes to its increased I/O capabilities.
• The board includes a reset button, which allows users to restart the microcontroller without needing to unplug the power source.

Compatibility

The Arduino Mega 2560 is compatible with most Arduino shields, which are additional circuit boards that can be stacked on top of the Mega to provide extra functionality. This compatibility makes it easier for developers to expand their projects with features like wireless communication, GPS, or LCD displays.

Specifications of the Arduino Mega 2560

The Arduino Mega 2560 features the following specifications:

• Microcontroller: ATmega2560
• Operating Voltage: 5 volts
• Recommended Input Voltage: 7 to 12 volts
• Input Voltage Range: 6 to 20 volts
• Digital Input/Output Pins: 54 (15 pins provide PWM output)
• Analog Input Pins: 16
• DC Current per I/O Pin: 40 mA
• DC Current for 3.3V Pin: 50 mA
• Flash Memory: 256 KB (8 KB used by the bootloader)
• Static Random Access Memory (SRAM): 8 KB
• Electrically Erasable Programmable Read-Only Memory (EEPROM): 4 KB
• Clock Speed: 16 MHz
• USB Host Chip: MAX3421E
• Dimensions: Length – 101.52 mm, Width – 53.3 mm
• Weight: 36 g

Arduino Mega 2560 Pin Configuration

The pin configuration of the Arduino Mega 2560 board is illustrated below. Each pin on this board is associated with a specific function. Notably, all analog pins can also be utilized as digital I/O pins. This versatility allows for the design of various Arduino Mega projects. The board offers a generous memory space and enhanced processing power, enabling seamless operation with a wide range of sensors without delays. Compared to other Arduino boards, the Mega 2560 stands out for its physical capabilities and superior performance.

The Arduino Mega 2560 features a comprehensive pin configuration that allows for extensive connectivity and functionality in various projects. Below is an overview of its pin layout:

1. Digital Pins

• Total: 54 digital I/O pins (labeled from 0 to 53)
• PWM Output: Pins 2 to 13 and 44 to 46 can be used for Pulse Width Modulation (PWM).
• Digital Pin Functions: Can be configured as inputs or outputs to read or send digital signals (HIGH or LOW).

2. Analog Pins

• Total: 16 analog input pins (labeled from A0 to A15)
• Function: Used to read analog signals from sensors. The analog inputs can convert the voltage to a digital value using a 10-bit ADC (Analog-to-Digital Converter).

The Arduino Mega board includes 16 analog pins, labeled A0 to A15. It’s important to note that all these analog pins can also function as digital I/O pins. Each analog pin offers a 10-bit resolution, allowing measurements from GND to 5 volts. Additionally, the maximum value can be adjusted using the AREF pin, in conjunction with the analogReference() function.

3. Power Pins

Vin: Input voltage (7-12V) to the board.

The Arduino Mega 2560 accepts an input voltage range of 7 to 20 volts. This voltage, supplied through the power jack, is accessible via a designated pin. The board automatically regulates the output voltage from this pin to a stable 5V for use in various components and circuits.

Pin 3.3V & 5V

These pins deliver a regulated output voltage of approximately 5V. This Regulated Power Supply (RPS) powers both the microcontroller and other components connected to the Arduino Mega board. The 5V output can be accessed from the Vin pin, an additional regulated 5V supply, or via a USB cable. Additionally, the 3.3V pin provides another option for voltage regulation, with a maximum current output of 50mA.

• 5V: Provides 5V output from the onboard voltage regulator.
• 3.3V: Provides 3.3V output (max 50mA).

GND

The Arduino Mega board features five GND pins, allowing you to use any of them as needed for your project.

4. Special Function Pins

Reset Pin: Used to reset the board.

The RST pin on the Arduino Mega board is used for resetting the board. By pulling this pin low, the board can be reset, allowing for a fresh start in your project.

TX/RX Pins:

Digital pins 0 (RX) and 1 (TX) are used for serial communication.

The serial pins on the Arduino Mega board, namely TXD and RXD, are used for transmitting and receiving serial data. TX represents the transmission of information, while RX indicates the reception of data. The board features four sets of serial pin combinations:

• Serial 0: TX (1) and RX (0)
• Serial 1: TX (18) and RX (19)
• Serial 2: TX (16) and RX (17)
• Serial 3: TX (14) and RX (15)

These combinations facilitate effective serial communication for various projects.

SPI Pins:

SPI stands for Serial Peripheral Interface, a protocol used for transmitting data between the microcontroller and other components. The Arduino Mega board utilizes four pins for SPI communication:

• MISO (Pin 50): Master In Slave Out
• MOSI (Pin 51): Master Out Slave In
• SCK (Pin 52): Serial Clock
• SS (Pin 53): Slave Select

These pins facilitate efficient data transfer between devices.

I2C Pins:

• SDA: Pin 20
• SCL: Pin 21

The Arduino Mega board supports I2C communication through two pins: 20 and 21. Pin 20 is the Serial Data Line (SDA), used for holding data, while pin 21 is the Serial Clock Line (SCL), which is primarily responsible for providing data synchronization among connected devices.

5. Other Pins

External Interrupts:

External interrupts can be generated using six pins on the Arduino Mega board, specifically:

• Interrupt 0: Pin 2
• Interrupt 1: Pin 3
• Interrupt 2: Pin 21
• Interrupt 3: Pin 20
• Interrupt 4: Pin 19
• Interrupt 5: Pin 18

These pins can trigger interrupts in various ways, including by detecting a LOW value, a rising or falling edge, or a change in the pin value.

LED Pin: Pin 13 has a built-in LED that can be controlled

This Arduino board features an LED connected to digital pin 13. This LED can be controlled based on the high and low values of the pin, providing an excellent opportunity to enhance your programming skills in real time.

AREF:

The term AREF stands for Analog Reference Voltage, serving as the reference voltage for the analog inputs on the Arduino board.

6. Dimensions

The dimensions of the Arduino Mega 2560 board are 101.6 mm (4 inches) in length and 53.34 mm (2.1 inches) in width. This board offers a larger size compared to other boards available on the market. However, it’s important to note that the power jack and USB port extend slightly beyond these specified measurements.

7. Shield Compatibility

The Arduino Mega is compatible with most shields designed for other Arduino boards. Before using a shield, ensure that its operating voltage matches the board’s voltage. Most shields operate at either 3.3V or 5V, and using shields with higher operating voltages can damage the board.

Additionally, the shield’s distribution header must align with the corresponding pins on the Arduino board. Once aligned, you can easily connect the shield to the Arduino board and begin using it.

8. Programming

Users can program the Arduino Mega 2560 using the Arduino IDE (Integrated Development Environment), which supports the C programming language. In this context, “sketch” refers to the code written in the IDE, and users upload it to the Arduino board through a USB cable.

The Arduino Mega includes a bootloader, allowing users to upload program code without needing an external burner. The bootloader communicates using the STK500 protocol.

After compiling and uploading the Arduino program, you can disconnect the USB cable to cut power to the board. When using the Arduino for a project, you can supply power through the power jack or the Vin pin.

Another notable feature of the Arduino Mega is its multitasking capability. While the Arduino IDE does not support multitasking, you can utilize additional operating systems like RTX or FreeRTOS to write C programs for this purpose. This flexibility allows for the creation of custom-built programs using an ISP connector.

In summary, the Arduino Mega 2560 upgrades the older Arduino Mega board. Its extensive number of pins makes it more suited for complex applications like temperature sensing, 3D printing, IoT projects, radon detection, and real-time data monitoring, rather than simple projects.

Applications of Arduino Mega 2560

The Arduino Mega 2560 is a versatile microcontroller board that is widely used across various fields due to its extensive capabilities and multiple input/output pins. Here are some prominent applications:

1. Robotics

The Arduino Mega 2560 is a popular choice for robotics projects due to its capability to control multiple motors and sensors. With 54 digital I/O pins, it allows for complex configurations, enabling autonomous movement and decision-making. This makes it suitable for building robotic arms, drones, and wheeled robots that require precise control and coordination.

2. 3D Printing

Many 3D printers leverage the Arduino Mega 2560 to manage their operations. The board interfaces with stepper motors, temperature sensors, and control systems, providing the necessary commands for precise printing. Its compatibility with various 3D printing firmware, such as Marlin, enhances its effectiveness in this application, allowing for detailed and reliable 3D modeling.

3. IoT (Internet of Things) Applications

The Mega 2560 is frequently used in IoT projects, facilitating the connection of numerous sensors and devices to the internet. It can monitor environmental parameters like temperature and humidity and send this data to cloud platforms for analysis. The board’s multiple communication protocols, including Ethernet and Wi-Fi, make it an excellent choice for building smart home systems and remote monitoring solutions.

4. Data Logging

The Arduino Mega efficiently handles data logging applications by collecting data from various sensors. Users can employ it in environmental monitoring projects to record temperature, humidity, and air quality over time. It logs data that can be stored on SD cards or sent to a computer for analysis, making it valuable for research and development purposes.

5. Temperature and Humidity Control Systems

This board can be integrated into systems designed for monitoring and controlling temperature and humidity levels. Common applications include greenhouse automation and HVAC systems, where the Mega 2560 processes input from temperature and humidity sensors. It can automatically adjust fan speeds, heating elements, or humidifiers based on sensor readings, ensuring optimal conditions for plants or indoor environments.

6. Wearable Technology

People use the Arduino Mega 2560 in wearable tech projects that require extensive data processing and multiple sensors. It helps create devices like fitness trackers or health monitoring systems that measure heart rate, activity levels, and more. The board’s flexibility allows users to integrate various sensors, enhancing both the functionality and user experience of wearable gadgets.

7. Home Automation

The Mega 2560 acts as the core component in home automation systems, managing tasks such as controlling lights, appliances, and security systems. By connecting various sensors and actuators, users can automate their homes to respond to specific conditions or user inputs. This capability makes it easier to create smart environments that enhance convenience and energy efficiency.

8. Educational Projects

This board is widely used in educational settings to teach students about electronics, programming, and robotics. Its extensive community support and resources make it an excellent tool for hands-on learning. Students can engage in various projects, ranging from simple circuits to complex robotic systems, fostering creativity and technical skills.

9. Art Installations

Artists increasingly use the Arduino Mega 2560 to create interactive installations that respond to environmental stimuli or user interactions. The board can control lights, sounds, and motors, enhancing the viewer’s engagement with the artwork. This capability allows for innovative expressions in art, combining technology with creativity to produce immersive experiences.

10. Game Development

The Mega 2560 can be utilized to build custom gaming consoles or interactive gaming setups. It interfaces with various inputs, such as buttons and sensors, and outputs, like lights and sounds, to create engaging gameplay experiences. By harnessing the board’s extensive I/O capabilities, developers can create unique and immersive games that leverage physical interactions.

Advantages of Arduino Mega 2560

These are the Advantages of Arduino Mega 2560:

1. High Number of I/O Pins

The Arduino Mega 2560 offers 54 digital input/output pins and 16 analog input pins, making it suitable for projects requiring multiple sensors and actuators. This abundance of pins allows for complex circuit designs and the ability to control a variety of devices simultaneously, making it ideal for larger projects.

2. Increased Memory

With 256 KB of flash memory, 8 KB of SRAM, and 4 KB of EEPROM, the Mega 2560 can handle larger sketches and more complex algorithms. This increased memory capacity is beneficial for projects that require substantial data processing, such as data logging or running intricate control systems, ensuring smoother operation.

3. Versatile Connectivity Options

The Mega 2560 supports various communication protocols, including Serial, I2C, and SPI, allowing seamless integration with different devices. This versatility facilitates connections to sensors, displays, and other microcontrollers, making it a flexible choice for diverse applications in electronics and IoT.

4. Robust Community Support

The Arduino ecosystem has a vast community of users and developers who contribute to extensive libraries, tutorials, and forums. This community support makes it easier for beginners to learn and troubleshoot their projects, providing valuable resources and inspiration for more experienced developers.

5. Built-in USB Interface

The Arduino Mega 2560 comes with a built-in USB interface that simplifies programming and communication with a computer. This feature eliminates the need for additional hardware, streamlining the development process and enabling quick uploads of code to the board.

6. Compatibility with Shields

The Mega 2560 is compatible with numerous Arduino shields, which can be stacked on top of the board to expand its functionality. This compatibility allows users to easily add features such as Ethernet connectivity, GPS, or motor control without complex wiring, enhancing the board’s versatility.

7. Ideal for Complex Projects

The Arduino Mega 2560, with its extensive features and capabilities, works particularly well for complex projects such as robotics, home automation, and IoT applications. Its ability to manage multiple tasks and connections makes it a reliable choice for developers aiming to create sophisticated systems.

8. Real-time Processing

The Arduino Mega 2560’s microcontroller can perform real-time processing, enabling quick responses to sensor inputs and user interactions. This capability is crucial for applications that require immediate feedback, such as automated control systems and interactive installations.

9. User-Friendly Development Environment

The Arduino IDE is intuitive and easy to use, making it accessible for beginners while providing advanced features for experienced users. The environment supports C/C++ programming and simplifies the process of writing, debugging, and uploading code to the Mega 2560, promoting rapid prototyping.

10. Affordable and Widely Available

The Arduino Mega 2560 offers a more affordable option compared to other microcontroller boards with similar features. Its widespread availability in electronics shops and online makes it an accessible choice for hobbyists, educators, and professionals alike, encouraging experimentation and innovation.

Disadvantages of Arduino Mega 2560

These are the Disadvantages of Arduino Mega 2560:

1. Larger Size

The Arduino Mega 2560 is physically larger than other Arduino boards, making it less suitable for projects with limited space. Its size can be a drawback in compact designs, where a smaller microcontroller may be more appropriate, leading to potential difficulties in fitting it into enclosures or tight spaces.

2. Power Consumption

Compared to smaller Arduino boards, the Mega 2560 consumes more power, which can be a concern for battery-operated projects. This higher power draw may require a larger battery capacity or more frequent recharging, complicating the design for portable applications.

3. Complexity for Beginners

While the Arduino platform is user-friendly, the numerous features and capabilities of the Mega 2560 can overwhelm beginners. New users may find it challenging to understand how to utilize all its functions effectively, potentially hindering their initial learning experience.

4. Limited Processing Speed

Although the Mega 2560 is powerful, it still operates at a maximum clock speed of 16 MHz, which may not be sufficient for computationally intensive tasks. For applications requiring faster processing, such as advanced data analysis or real-time video processing, users might need to consider more powerful alternatives.

5. Less Suitable for Simple Projects

For straightforward projects that do not require many I/O pins or extensive memory, the Mega 2560 can be overkill. Using a simpler and smaller Arduino board, like the Uno, may be more efficient and cost-effective for basic applications, leading to unnecessary complexity in the project.

6. Bootloader Issues

In some cases, users may need to update or replace the bootloader on the Mega 2560, especially if they encounter issues during programming. This process can become complicated for less experienced users, as it requires additional tools and knowledge to restore the board’s functionality.

7. Price Compared to Smaller Boards

The Arduino Mega 2560 is generally more expensive than smaller Arduino boards, which can be a consideration for budget-conscious projects. For users working on tight budgets, this higher cost may limit the number of units they can purchase or allocate to a project.

8. Limited Analog Resolution

The Mega 2560’s analog input pins provide only 10-bit resolution, which may not be sufficient for applications requiring high precision in analog measurements. For high-accuracy applications, users might need to integrate external ADCs (Analog-to-Digital Converters) to achieve the desired resolution.

9. No Native Ethernet Support

Unlike some other Arduino boards that come with built-in Ethernet capabilities, the Mega 2560 lacks native support for networking. Users interested in networking applications must rely on additional shields or modules, which can complicate the setup and increase costs.

10. Dependency on External Libraries

While the Arduino ecosystem offers a wealth of libraries, relying on external libraries for specific functionalities can lead to issues with compatibility and maintenance. Users may encounter challenges if libraries become outdated or no longer supported, potentially hindering project development.
