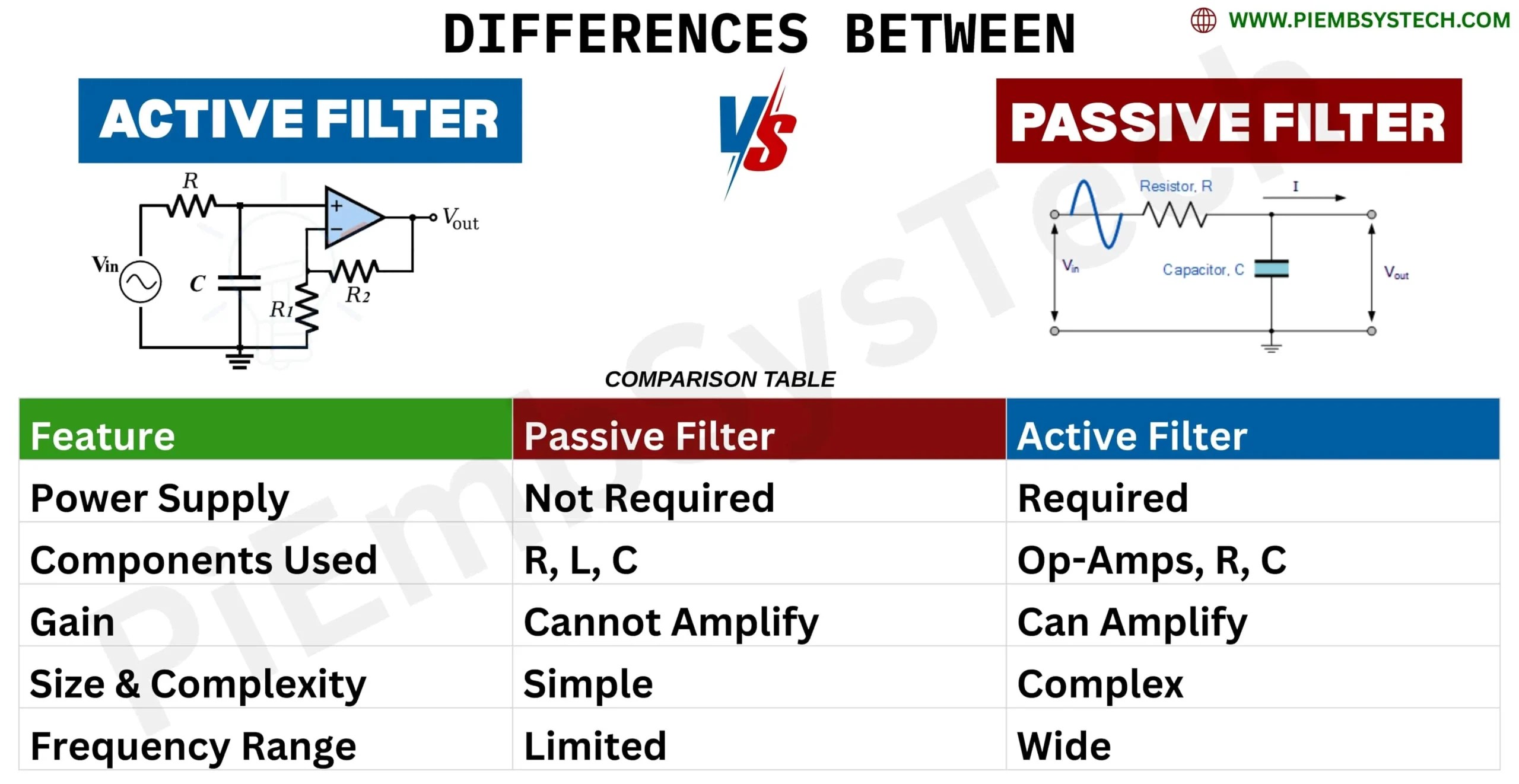

Side-by-side comparison of active and passive filters with circuit symbols and characteristics

Difference Between Active Filter and Passive Filter

Difference Between Active Filter and Passive Filter: Explained with Examples and Comparison

Learn the complete difference between active and passive filters in electronics. This expert guide covers definitions, examples, design differences, pros, cons, and applications.

<
!-- Ezoic - wp_under_page_title - under_page_title -->
Side-by-side comparison of active and passive filters with circuit symbols and characteristics

πŸ“˜ Introduction

Filters are essential in electronics and signal processing. Whether it’s audio systems, wireless communication, or embedded circuits, filters help refine and control signals. But not all filters are built the sameβ€”Active Filters and Passive Filters serve different purposes with unique characteristics.

πŸ“Œ In this in-depth guide, we’ll explore:

  • βœ… What are active and passive filters?
  • βœ… Core differences
  • βœ… Use cases and practical examples
  • βœ… FAQs for deeper understanding

⚑ What is a Filter in Electronics?

A filter is an electronic circuit that allows certain frequency components of a signal to pass while blocking others.

Filters are mainly categorized into two types:

  • Active Filters
  • Passive Filters

πŸ”Œ What is a Passive Filter?

βœ… Definition:

A passive filter uses only passive components like:

  • Resistors (R)
  • Capacitors (C)
  • Inductors (L)

It does not require an external power source and is used mainly for low-frequency signal filtering.

🧩 Key Characteristics:

βœ… Does not need external power
❌ Cannot amplify signals
βœ… Works well at high power levels
❌ Bulky when inductors are used

πŸ” Examples:

  • RC Low-pass Filter
  • RL High-pass Filter
  • LC Band-pass Filter

βš™οΈ What is an Active Filter?

βœ… Definition:

An active filter uses active components (like Op-Amps) along with resistors and capacitors to process signals. It requires external power and is capable of amplifying the signal.

🧩 Key Characteristics:

βœ… Needs external power supply πŸ”Œ
βœ… Amplifies and filters simultaneously
βœ… Compact in design (no inductors)
❌ Limited to low/medium power applications

πŸ” Examples:

  • Op-Amp Based Low-pass Filter
  • Active Band-stop Filter
  • Butterworth and Chebyshev Filters

πŸ”„ Active vs Passive Filter: Key Differences

🏷️ Feature⚑ Active FilterπŸ”Œ Passive Filter
Power Supply Requiredβœ… Yes❌ No
Amplificationβœ… Yes❌ No
Components UsedOp-Amps + R, CR, C, and possibly L
Frequency Range❌ Limited to low/medium frequenciesβœ… Suitable for high-frequency signals
Size and Weightβœ… Compact (no inductors)❌ Can be bulky due to inductors
Signal Gainβœ… Yes (amplification possible)❌ No gain, only attenuation
Impedance Matchingβœ… Better❌ Poorer
Noise Performanceβœ… Lower noise with proper Op-Amps❌ More susceptible to signal loss
Costβœ… Generally lower (no inductors)❌ Higher for high-power applications

🌐 Real-World Applications

⚑ Active Filters:

  • βœ… Audio equalizers
  • βœ… Biomedical instruments (ECG, EEG)
  • βœ… Digital communication systems
  • βœ… Signal pre-conditioning in microcontroller circuits

πŸ”Œ Passive Filters:

  • βœ… High-voltage industrial circuits
  • βœ… Power line noise filtering
  • βœ… RF communication systems
  • βœ… Speaker crossover networks

🧠 Summary Table

CategoryActive FilterPassive Filter
Power Neededβœ… Yes❌ No
Amplificationβœ… Possible❌ Not possible
Frequency Handling❌ Limitedβœ… Wide range (including RF)
Size & Weightβœ… Smaller❌ Bulkier
Design Complexityβœ… Higher flexibilityβœ… Simpler, but less capable
Signal Strength Outputβœ… Can increase❌ Only decreases or filters

🏁 Conclusion

Both active and passive filters play vital roles in electronics.
βœ… Active filters shine in low-frequency, compact, and precision circuits.
βœ… Passive filters are ideal for rugged, high-frequency, and power-heavy applications.

🎯 Choosing the right type depends on your project’s frequency range, power constraints, size, and performance requirements.

At PiEmbSysTech, we break down every technical detail into practical, industry-standard knowledge.
πŸ“Œ Bookmark us for more unbeatable guides in embedded systems, electronics, and signal processing.

❓ Frequently Asked Questions (FAQs)

πŸ“Œ Can a passive filter amplify signals?

❌ No. Passive filters can only attenuate or pass signalsβ€”they cannot amplify.

πŸ“Œ Which is better: active or passive filter?

It depends:
βœ… Active filters for low-frequency, compact, low-power applications.
βœ… Passive filters for high-frequency, high-power applications

πŸ“Œ Why avoid inductors in passive filters?

Inductors are bulky, expensive, and introduce electromagnetic interference (EMI), especially in compact circuits.

πŸ“Œ Are active filters more precise?

βœ… Yes. They offer better control over filter characteristics like gain, bandwidth, and Q factor.
