RS232 vs RS485 – Complete Guide for Embedded Systems Engineers

Introduction

Serial communication protocols are fundamental to embedded systems, industrial automation, robotics, and IoT devices. When two electronic systems need to exchange data reliably, engineers often rely on proven standards like RS232 and RS485.

Although modern communication technologies such as Ethernet, CAN, and USB are widely used, RS232 and RS485 remain essential serial communication protocols in many embedded and industrial applications. Their reliability, simplicity, and robustness make them ideal for connecting microcontrollers, PLCs, sensors, and industrial equipment.

Understanding the differences between RS232 vs RS485 is important for engineers selecting the right communication interface for their projects.

In this guide, we will explore:

• What RS232 communication is and how it works
• What RS485 communication is and why it is widely used in industrial networks
• The key differences between RS232 and RS485
• Real-world applications in embedded systems and industrial automation

By the end of this article, you will clearly understand which protocol to use in your embedded system or industrial communication network.

What is RS232?

Definition

RS232 (Recommended Standard 232) is one of the earliest and most widely used serial communication standards. It was introduced in the 1960s for communication between computers and peripheral devices such as modems, printers, and terminals.

RS232 defines:

• Voltage levels
• Signal timing
• Connector types
• Communication rules between devices

It is commonly used for point-to-point communication between two devices.

How RS232 Communication Works

In RS232 communication, data is transmitted serially – meaning bits are sent one after another over a single communication line.

Typical RS232 communication involves:

• TX (Transmit) line
• RX (Receive) line
• GND (Ground)

Communication is asynchronous and typically uses UART (Universal Asynchronous Receiver Transmitter) hardware.

The transmitter converts digital data into RS232 voltage levels, and the receiver converts it back into logic-level signals.

RS232 Signal Levels

One unique characteristic of RS232 is its voltage level specification.

Typical RS232 voltage levels:

Logic State	Voltage Level
Logic 1	-3V to -15V
Logic 0	+3V to +15V

This inverted signaling helps reduce noise sensitivity but also requires level conversion circuits when connecting to microcontrollers.

Common IC used for this purpose:

• MAX232 level shifter

Common Applications of RS232

Despite being an older standard, RS232 communication is still widely used.

Typical applications include:

• Computer serial ports
• Industrial control systems
• Embedded device debugging
• GPS modules
• Medical equipment
• Laboratory instruments

Many microcontrollers still support UART interfaces compatible with RS232.

Advantages of RS232

Key benefits include:

• Simple communication protocol
• Low implementation cost
• Easy to debug
• Widely supported in legacy systems

Limitations of RS232

However, RS232 also has limitations:

• Short communication distance
• Supports only two devices
• Low noise immunity
• Limited data rate compared to modern protocols

Because of these limitations, RS485 communication became popular in industrial environments.

What is RS485?

Definition

RS485 (Recommended Standard 485) is a serial communication standard designed for long-distance and multi-device communication.

It is widely used in industrial automation networks, building automation systems, and PLC communication.

Unlike RS232, RS485 supports multiple devices on the same bus.

How RS485 Communication Works

RS485 uses differential signaling, meaning data is transmitted using two wires.

These signals are:

• A (Data+)
• B (Data-)

Instead of measuring voltage relative to ground, RS485 measures the difference between the two signals.

This technique improves noise immunity significantly.

Differential Signaling

Differential communication means:

• Logic state is determined by voltage difference
• External noise affects both wires equally
• Noise cancels out at the receiver

Because of this, RS485 communication works well in electrically noisy industrial environments.

Multi-Device Communication

A major advantage of RS485 is its ability to support multiple devices on a single bus.

Typical RS485 networks support:

• Up to 32 devices (standard)
• Even more with modern transceivers

Communication often uses protocols such as:

• Modbus RTU
• Profibus
• BACnet
• DMX512

These protocols are widely used in industrial control systems.

Advantages of RS485

RS485 offers several advantages:

• Long communication distance
• Excellent noise immunity
• Supports multi-drop networks
• High reliability in industrial environments

Limitations of RS485

However, RS485 also has some limitations:

• Requires termination resistors
• Bus arbitration may be needed
• Slightly more complex wiring

Despite these challenges, RS485 remains a standard interface for industrial communication systems.

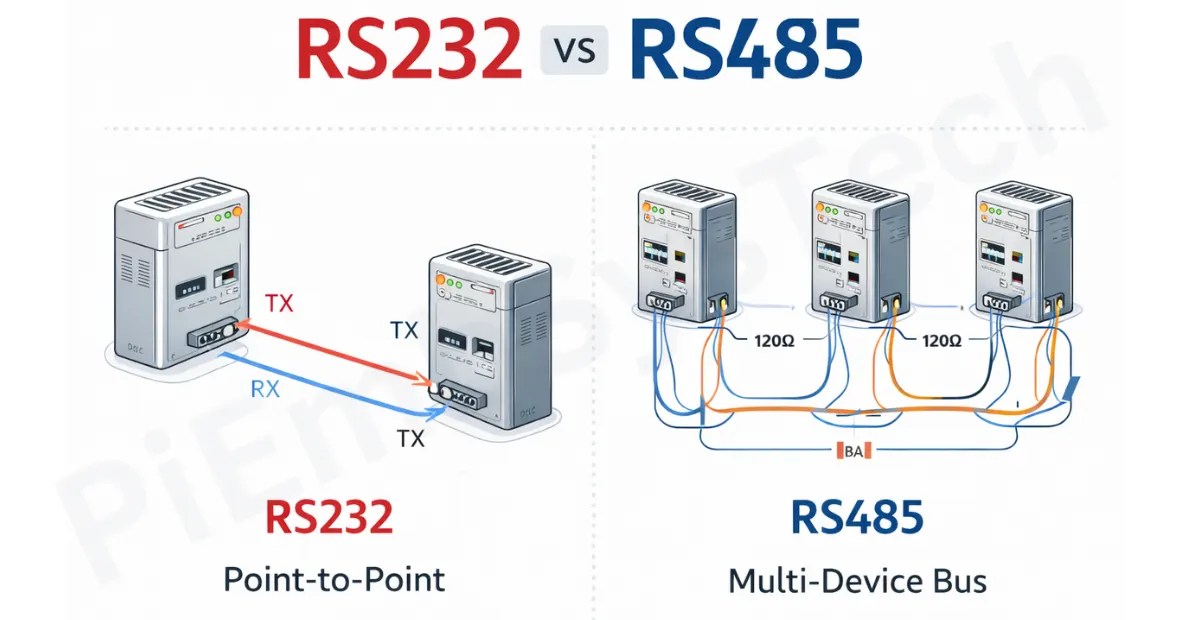

Key Differences Between RS232 and RS485

Below is a clear comparison between RS232 vs RS485.

Feature	RS232	RS485
Communication Type	Point-to-point	Multi-device bus
Signal Type	Single-ended	Differential
Maximum Distance	~15 meters	Up to 1200 meters
Number of Devices	2 devices	Up to 32 devices
Noise Immunity	Low	High
Data Speed	Lower over distance	Higher over long distances
Typical Use	Computer peripherals	Industrial automation

This comparison highlights why RS485 is preferred for industrial networks, while RS232 is suitable for short-distance communication.

RS232 vs RS485 in Embedded Systems

Both RS232 and RS485 communication protocols play important roles in embedded systems.

RS232 in Embedded Systems

Common uses include:

• Microcontroller debugging
• Bootloader communication
• Configuration interfaces
• GPS module communication

Engineers often use RS232 during development and testing.

RS485 in Embedded Systems

RS485 is widely used in:

• Industrial IoT devices
• Smart energy meters
• PLC communication networks
• Factory automation systems
• Building management systems

RS485 is ideal when multiple embedded devices need to communicate over long distances.

Applications of RS232

Although newer interfaces exist, RS232 remains useful.

Common applications include:

Computer Serial Ports

Legacy computers used RS232 ports for communication with external devices.

Industrial Equipment

Many industrial machines still provide RS232 interfaces for configuration and diagnostics.

Debugging Interfaces

Engineers frequently use RS232 for debugging microcontrollers.

Applications of RS485

RS485 communication is widely used in industrial environments.

Industrial Automation

RS485 networks connect:

• Sensors
• Controllers
• PLCs
• Actuators

PLC Communication

RS485 supports industrial protocols such as Modbus RTU.

Building Automation

Systems such as HVAC and lighting control often rely on RS485 communication networks.

Energy Management Systems

Smart energy meters use RS485 to communicate with central monitoring systems.

RS232 vs RS485 – Which One Should You Choose?

Choosing between RS232 vs RS485 depends on your application.

Choose RS232 when:

• Communication distance is short
• Only two devices need to communicate
• Simplicity is important

Choose RS485 when:

• Multiple devices need to communicate
• Communication distance is long
• The environment has electrical noise
• Industrial reliability is required

For most modern industrial and IoT systems, RS485 is the better choice.

Future of Serial Communication in Embedded Systems

While newer communication protocols such as CAN, Ethernet, and USB are becoming more popular, RS232 and RS485 continue to be widely used.

Reasons include:

• Proven reliability
• Low implementation cost
• Strong industrial adoption
• Simple hardware requirements

In industrial environments, RS485 networks will remain important for decades, especially in automation and smart infrastructure systems.

Conclusion

Both RS232 and RS485 are important serial communication protocols used in embedded systems and industrial automation.

RS232 is best suited for short-distance, point-to-point communication, making it ideal for debugging and legacy interfaces.

RS485, on the other hand, offers long-distance communication, high noise immunity, and multi-device networking, making it the preferred choice for industrial communication systems.

Understanding the differences between RS232 vs RS485 helps engineers design reliable communication networks for embedded systems, IoT devices, and automation systems.
