Transmission Control Protocol (TCP/IP)

TCP operates at the transport layer of the OSI model and is responsible for providing reliable data transfer between applications. It is commonly used in applications such as email, web browsing, and file transfer, where reliable data transmission is essential.

History of Transmission Control Protocol (TCP)

TCP (Transmission Control Protocol) was developed as part of the ARPANET project, which was a research project funded by the United States Department of Defense. ARPANET was the first operational packet-switching network, and its goal was to develop new technologies for communication and information exchange.

TCP was created by Vint Cerf and Bob Kahn in the early 1970s as a means of providing reliable data transmission over the ARPANET. At the time, the existing communication protocols were unreliable, and there was a need for a new protocol that could ensure reliable data transmission between devices.

Cerf and Kahn developed TCP as an end-to-end protocol that would provide reliable data transmission between applications running on different devices. The initial design of TCP was based on the existing IP (Internet Protocol) and provided a reliable transport mechanism for IP packets.

TCP was standardized as a part of the Internet Protocol suite, and its use quickly became widespread. Today, TCP is used as the primary communication protocol for the internet and is an essential component of the infrastructure that powers the World Wide Web.

Features of Transmission Control Protocol (TCP)

The Transmission Control Protocol (TCP) has several key features that contribute to its reliability and robustness, including:

1. Connection-Oriented: TCP is a connection-oriented protocol, meaning that it establishes a reliable end-to-end connection between two devices before transmitting data. This allows for the reliable transfer of data between devices and ensures that data is transmitted in the correct order.
2. Reliable Data Transmission: TCP provides reliable data transmission by using error checking and retransmission of lost or damaged packets. This ensures that data is transmitted correctly and without errors.
3. Flow Control: TCP provides flow control, which helps to ensure that data is transmitted at a rate that the receiving end can handle. This helps to prevent network congestion and ensure the efficient use of network resources.
4. Congestion Control: TCP provides congestion control, which helps to prevent network congestion and ensure the efficient use of network resources. The congestion control mechanism monitors the network conditions and adjusts the transmission rate accordingly.
5. Segmentation and Reassembly: TCP breaks down data into segments, which are transmitted separately and reassembled at the receiving end. This helps to ensure that data is transmitted efficiently and reduces the risk of network congestion.
6. End-to-End Communication: TCP provides end-to-end communication, meaning that data is transmitted directly between the source and the destination without intermediaries. This ensures that data is transmitted securely and without interference.

Applications of Transmission Control Protocol (TCP)

The Transmission Control Protocol (TCP) is used in a wide range of applications, including:

1. Web Browsing: TCP is used by the HTTP (Hypertext Transfer Protocol), which is the primary protocol used for transmitting data on the World Wide Web. HTTP relies on TCP to provide reliable and efficient data transmission.
2. Email: TCP is used by the Simple Mail Transfer Protocol (SMTP), which is the standard protocol used for transmitting email. SMTP relies on TCP to ensure that email is transmitted reliably and securely.
3. File Transfer: TCP is used by the File Transfer Protocol (FTP), which is a standard protocol used for transferring files over the internet. FTP relies on TCP to provide reliable and efficient file transfer.
4. Remote Login: TCP is used by the Remote Login Protocol (RLP), which is a standard protocol used for remotely accessing other computers. RLP relies on TCP to provide secure and reliable remote access.
5. Remote Procedure Call: TCP is used by the Remote Procedure Call (RPC) protocol, which is a standard protocol used for calling procedures on remote computers. RPC relies on TCP to provide reliable and efficient communication between computers.
6. Streaming Media: TCP is used by streaming media protocols, such as the Real-time Streaming Protocol (RTSP), to provide reliable and efficient streaming of audio and video over the internet.

Structure of Transmission Control Protocol (TCP)

The Structure of the Transmission Control Protocol (TCP) is based on the concept of end-to-end communication. It is designed to provide reliable and efficient data transmission between applications running on different devices. The architecture of TCP can be broken down into the following components:

1. Segments: TCP divides data into segments, which are the smallest unit of data that can be transmitted by the protocol. Each segment contains the data to be transmitted and header information, such as the source and destination addresses and sequence and acknowledgment numbers.
2. Sockets: TCP uses sockets, which are endpoints for communication between applications running on different devices. Sockets provide a way for applications to communicate with each other and send and receive data using TCP.
3. Port numbers: TCP uses port numbers to identify the applications that are communicating with each other. Each application is assigned a unique port number, which is used to route incoming data to the correct application.
4. Sequence and Acknowledgment Numbers: TCP uses sequence and acknowledgment numbers to keep track of the data that is being transmitted. The sequence number is used to keep track of the order of the segments, and the acknowledgment number is used to confirm that segments have been received successfully.
5. Flow Control: TCP uses flow control to ensure that data is transmitted at a rate that the receiving end can handle. This helps to prevent network congestion and ensure the efficient use of network resources.
6. Congestion Control: TCP uses congestion control to prevent network congestion and ensure the efficient use of network resources. The congestion control mechanism monitors the network conditions and adjusts the transmission rate accordingly.

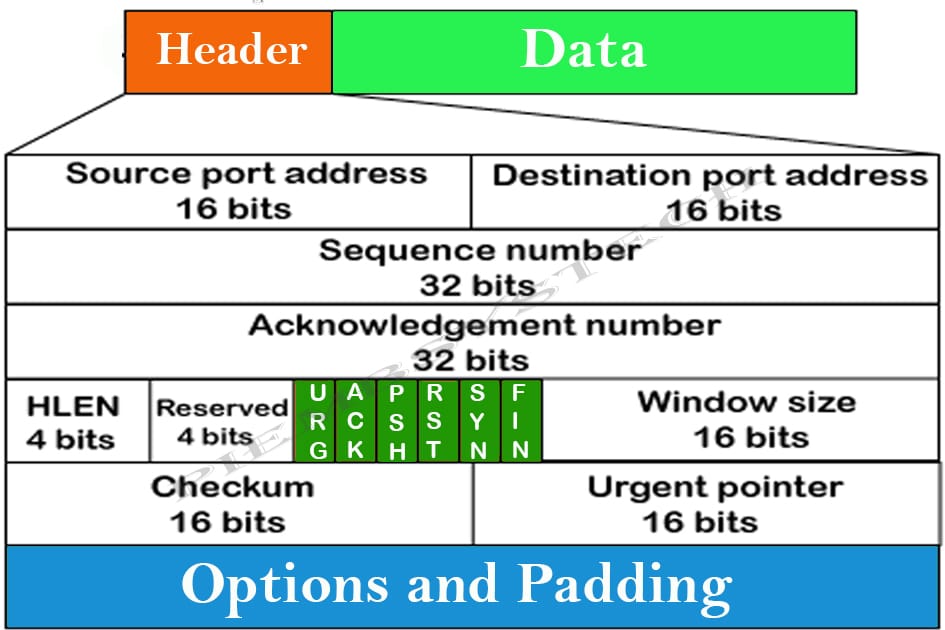

Transmission Control Protocol (TCP) Frame Format

The Transmission Control Protocol (TCP) frame format consists of several fields, each of which provides important information about the data being transmitted. The following is a description of each field in a TCP frame:

A single TCP Protocol frame or packets divided into two Segment as below:

1. TCP Header Segment:
2. TCP Data Segment

Transmission Control Protocol (TCP) Header Segment

The TCP header typically consists of 20 bytes of important information. It is a part of the TCP packet that contains important information about the data being transmitted over a network using the TCP protocol. The TCP header is placed in front of the data being transmitted and contains several fields that are used to manage the transmission of the data. I will explain the Transmission Control Protocol with TCP header fields and explain each fields.

1. Source Port: This 16-bit field identifies the source port number of the application that is sending the data. The source port number is used to route incoming data to the correct application on the receiving device.
2. Destination Port: This 16-bit field identifies the destination port number of the application that is receiving the data. The destination port number is used to route incoming data to the correct application on the receiving device.
3. Sequence Number: This 32-bit field is used to keep track of the order of the data being transmitted. The sequence number is incremented for each segment of data that is sent, allowing the receiving device to reassemble the data in the correct order.
4. Acknowledgment Number: This 32-bit field is used to confirm that segments have been received successfully. The acknowledgment number is set to the next expected sequence number for the incoming data, allowing the sending device to know which segments have been received.
5. Header Length: This 4-bit field indicates the length of the header in 32-bit words. The header length is used to determine the location of the data within the frame.
6. Flags: This 6-bit field contains various flags that are used to control the data transmission. The flags include the URG (Urgent) flag, the ACK (Acknowledgment) flag, the PSH (Push) flag, the RST (Reset) flag, the SYN (Synchronize) flag, and the FIN (Finish) flag.
   • URG (Urgent Pointer Valid): This flag indicates that the Urgent Pointer field is valid and points to urgent data in the packet. The URG flag is used to prioritize the processing of urgent data.
   • ACK (Acknowledgment): This flag indicates that the Acknowledgment Number field is valid and contains an acknowledgment of data sent by the other device. The ACK flag is used to ensure reliable data transmission by requiring the other device to acknowledge the receipt of data.
   • PSH (Push): This flag indicates that the receiver should push the received data to the application layer immediately, without buffering it. The PSH flag is used to reduce latency and improve performance for time-sensitive data.
   • RST (Reset): This flag indicates that the connection should be reset, effectively terminating the connection. The RST flag is used to abort a connection when an error is detected, such as a failure to establish a connection.
   • SYN (Synchronize): This flag indicates that the sender wants to initiate a connection with the receiver. The SYN flag is used to synchronize the sequence numbers of the sender and receiver and establish a connection.
   • FIN (Finish): This flag indicates that the sender has finished sending data and wants to close the connection. The FIN flag is used to gracefully terminate a connection and ensure that all data has been transmitted before closing the connection.
7. Window Size: This 16-bit field indicates the maximum amount of data that the receiving device can receive in a single segment. The window size is used to control the flow of data and prevent network congestion.
8. Checksum: This 16-bit field contains a checksum that is used to detect errors in the data transmission. The checksum is calculated for the header and data, allowing the receiving device to verify that the data has not been corrupted during transmission.
9. Urgent Pointer: This 16-bit field is used in conjunction with the URG flag to indicate the location of the urgent data within the frame. The urgent pointer is used to signal the receiving device that the data is urgent and should be processed immediately.
10. Options: This variable-length field is used to provide additional information about the data transmission. The options field can contain information about the maximum segment size, the window scaling factor, and other important parameters.

Transmission Control Protocol (TCP) Data Segment

The TCP (Transmission Control Protocol) data segment is a part of a TCP packet that contains the actual data being transmitted over a network. The data segment follows the TCP header, and its length can vary depending on the amount of data being transmitted.

The minimum payload size for a TCP data segment is 0 bytes, meaning that the packet only contains the TCP header and no data. This is known as a “header-only” packet, and is used for various TCP control messages, such as SYN and FIN packets.

The maximum payload size for a TCP data segment depends on several factors, including the maximum segment size (MSS) negotiated between the sender and receiver, the size of the data being transmitted, and the available network bandwidth. The MSS is typically negotiated during the TCP handshake process and specifies the maximum size of the data that can be transmitted in a single TCP segment. The maximum payload size is typically limited to the MSS size minus the size of the TCP header.

For example, if the MSS size is negotiated to be 1460 bytes, and the TCP header size is 20 bytes, the maximum payload size for a TCP data segment would be 1440 bytes (1460 – 20 = 1440). However, the actual payload size may be further limited by other factors, such as the available bandwidth, network congestion, and packet loss.

Working Principle of Transmission Control Protocol (TCP)

In the Transmission Control Protocol (TCP), communication occurs through a series of steps involving the establishment of a reliable connection, data transmission, and termination of the connection.

• Connection Establishment.
• Data Transmission.
• Connection Termination.

TCP Connection Establishment (Open)

Before any data can be transmitted, the two devices must establish a reliable connection. This is done through a three-way handshake process:

• The initiating device (client) sends a “SYN” (synchronize) message to the receiving device (server).
• The server sends a “SYN-ACK” (synchronize-acknowledgment) message back to the client to confirm the connection.
• The client sends an “ACK” (acknowledgment) message to the server to complete the three-way handshake and establish the connection.

TCP Data Transmission (Process)

Once the connection is established, the devices can begin transmitting data. TCP divides the data into segments and adds a header to each segment to provide information such as the sequence number and checksum. The segments are then transmitted over the network and reassembled at the destination.

TCP Reliable Data Transfer

To ensure that all data is transmitted correctly, TCP implements flow control and error checking. TCP uses a sliding window mechanism to control the flow of data and prevent overloading the receiver. Additionally, TCP adds a checksum to each segment to detect errors that may occur during transmission. If an error is detected, the segment is retransmitted.

TCP Connection Termination (Close)

When the data transmission is complete, the connection must be terminated. This is done through a four-way handshake process:

• The initiating device sends a “FIN” (finish) message to the receiving device
• The receiving device sends an “ACK” message to the initiating device to confirm receipt of the “FIN” message
• The receiving device sends a “FIN” message to the initiating device
• The initiating device sends an “ACK” message to the receiving device to confirm receipt of the second “FIN” message.

In conclusion, TCP provides a reliable and ordered delivery of data between two devices by establishing a connection, dividing data into segments, implementing flow control and error checking, and properly terminating the connection.

Addressing in Transmission Control Protocol (TCP)

TCP uses a combination of port numbers and IP addresses to identify the source and destination of the data being transmitted.

The IP address of a device provides its unique network location, while the port number of the application provides the specific location within the device that the data is being sent to or received from. This combination of IP address and port number is known as a socket and is used to uniquely identify a communication endpoint.

When a device sends data using TCP, it specifies both the source and destination socket in the header of the TCP frame. The destination socket is used by the receiving device to route the incoming data to the correct application, while the source socket is used to send any return data back to the correct application on the sending device.

In this way, addressing in TCP provides a way to direct data to the correct destination, ensuring that the data is received by the intended recipient and allowing multiple applications to run on the same device while maintaining their independence.

Different Types of Transmission Control Protocol (TCP)

There are two main types of Transmission Control Protocol (TCP):

1. TCP with Reliable Data Transfer: This type of TCP is designed to provide a reliable and ordered delivery of data between two devices. It accomplishes this by implementing flow control, error checking, and retransmission of lost or damaged packets. This type of TCP is commonly used in applications where data integrity is important, such as in file transfers and email.
2. TCP with Congestion Control: In addition to providing reliable data transfer, this type of TCP also implements congestion control to prevent network congestion and improve overall network performance. This type of TCP monitors the network to determine how much data can be transmitted without causing congestion, and adjusts the transmission rate accordingly. This type of TCP is commonly used in applications where real-time data transfer is important, such as in audio and video streaming.

Advantages of Transmission Control Protocol (TCP)

The TCP (Transmission Control Protocol) is a widely used protocol for transmitting data over a network, and it offers several advantages, including:

1. Reliable Data Transmission: TCP provides reliable transmission of data by using sequence numbers and acknowledgments to ensure that all data is received correctly. It retransmits lost or corrupted packets to ensure that the data is received error-free.
2. Error Detection and Correction: TCP uses a checksum to detect errors in the transmitted data and ensures that the data is transmitted without errors. This helps to ensure that the data is received accurately.
3. Flow Control: TCP uses a sliding window protocol for flow control to ensure that data is transmitted at a rate that the receiver can handle. This helps to prevent congestion and ensures that data is transmitted efficiently.
4. Connection-Oriented: TCP is a connection-oriented protocol, which means that it establishes a connection before transmitting data. This helps to ensure that the data is transmitted in the correct order and that no data is lost during transmission.
5. Widely Supported: TCP is a widely supported protocol and is used in many applications, including web browsing, email, file transfers, and more. This means that it can be used across a wide range of networks and devices.

Disadvantages of Transmission Control Protocol (TCP)

While TCP (Transmission Control Protocol) provides many advantages for transmitting data over a network, it also has some disadvantages, including:

1. Overhead: TCP adds a significant amount of overhead to the transmitted data due to the additional packet header and error-checking mechanisms. This can reduce the available bandwidth and increase network latency.
2. Connection-Oriented: While the connection-oriented nature of TCP provides reliability, it can also result in slower data transmission rates due to the time required to establish and terminate connections.
3. Limited Scalability: TCP is not well-suited for high-performance, high-bandwidth applications, such as video streaming, due to the high overhead and limited scalability.
4. Limited Support for Multicast: TCP does not support multicast transmission, which can be a disadvantage in applications that require the efficient transmission of data to multiple recipients.
5. Vulnerable to Attacks: TCP can be vulnerable to certain types of attacks, such as SYN floods, which can result in denial-of-service (DoS) attacks and other security issues.
