Environment Setup in MATALAB Language

Introduction to Environment Setup in MATLAB Programming Language

Hello, and welcome to this blog post on how to set up your environment for the MATLAB programming language. MATLAB is a powerful and versatile tool for numerical computing, data analy

sis, visualization, and algorithm development. In this post, I will guide you through the steps to install MATLAB on your computer and introduce you to the main components of the MATLAB development environment. By the end of this post, you will be ready to start your journey with MATLAB and explore its extensive capabilities.

Environment Setup in MATLAB Language

So you’ve decided to dive into MATLAB for your programming needs. Great choice! Now, let’s get everything set up so you can hit the ground running.

1. Installing MATLAB

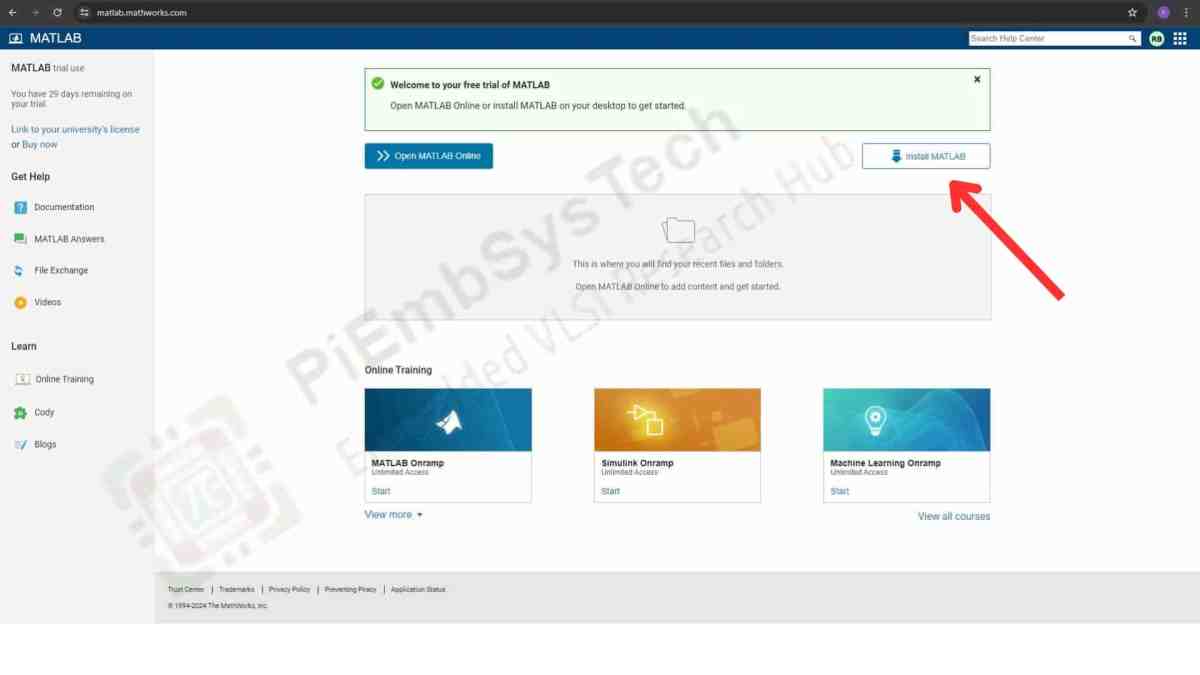

First things first, you’ll need to get MATLAB installed on your computer. Head over to the MathWorks website and download the MATLAB installer. Once it’s downloaded, just follow the installation instructions for your operating system. It’s pretty straightforward.

After the installation is complete, you’ll need to activate your MATLAB license. They’ll provide you with the necessary credentials to do this, so just follow the prompts and you should be good to go.

2. Getting Familiar with the MATLAB Desktop

Once MATLAB is installed and activated, you’ll be greeted with the MATLAB Desktop. This is where all the action happens.

• Command Window: Think of this as your playground. You can type commands here and see the results immediately.
• Editor: This is where you’ll write and edit your MATLAB code. It’s got some handy features like syntax highlighting and code suggestions to make your life easier.
• Current Folder: This shows you all the files and folders in your current working directory. It’s handy for managing your project files.
• Workspace: Here, you can see all the variables currently in memory. It’s useful for keeping track of what’s going on in your program.
• Command History: This keeps a log of all the commands you’ve entered. It’s great for reusing commands or checking what you’ve done in the past.

3. Customizing Your Environment

Everyone has their own preferences when it comes to their programming environment, and MATLAB is no different. You can customize things like the colors, fonts, and keyboard shortcuts to make MATLAB work the way you want it to.

4. Managing the MATLAB Path

Now, let’s talk about the MATLAB Path. This is basically a list of directories where MATLAB looks for functions and scripts. You’ll want to make sure that the directories containing your MATLAB files are included in the MATLAB Path so MATLAB can find them when you need them.

5. Using the Toolstrip

The Toolstrip is your go-to for accessing commonly used functions and features in MATLAB. Need to import some data? Plot a graph? The Toolstrip has got you covered.

6. Working with the Live Editor

The Live Editor is a pretty cool feature in MATLAB. It allows you to create interactive documents that combine code, output, and formatted text all in one place. It’s great for generating reports or sharing your work with others.

7. Debugging and Testing Your Code

Debugging is an inevitable part of programming, but MATLAB makes it a little less painful with its built-in debugger. You can set breakpoints, step through your code, and inspect variables to identify and fix issues.

8. Accessing Help and Documentation

Last but not least, MATLAB has a ton of resources available to help you out when you get stuck. There’s comprehensive documentation, examples, and tutorials built right into the program, as well as online resources and community forums provided by MathWorks.

Example of Environment Setup in MATLAB Language

Here’s a step-by-step example of how to set up your environment in MATLAB to enhance productivity and ensure an efficient workflow:

Installing MATLAB

• Download and Install: Visit the MathWorks website, download the MATLAB installer, and follow the instructions to install it on your system.
• Activation: Activate MATLAB using the license information provided by MathWorks.

Setting Up the MATLAB Path

• Add Folders to Path: Ensure that all necessary directories are added to the MATLAB path so MATLAB can access your scripts and functions.

addpath('C:\Users\YourUsername\Documents\MATLAB\Projects');
savepath;

• Set Current Folder: Change the current working directory to the folder you are working in.

cd('C:\Users\YourUsername\Documents\MATLAB\Projects\CurrentProject');

Customizing the Editor and Desktop

• Preferences: Customize the MATLAB environment by going to Home > Environment > Preferences.
• Colors and Fonts: Set the editor colors and fonts to your preference for better readability.
• Keyboard Shortcuts: Customize keyboard shortcuts for commonly used operations.
• Startup: Specify commands or scripts to run at startup (e.g., loading certain tools or setting paths).
• Example for `startup.m`:

% Example startup.m script
addpath('C:\Users\YourUsername\Documents\MATLAB\CustomFunctions');
fprintf('Welcome to MATLAB! Environment is set up.\n');

Utilizing the Toolstrip and Apps

• Toolstrip Access: Use the Toolstrip to quickly access functions like plotting, importing data, or accessing help.
• Apps: Launch frequently used apps from the Toolstrip, such as the Curve Fitting Tool or Image Processing Tool.
• Example: Launching the Curve Fitting Tool.

cftool;

Using the Live Editor

• Create Live Scripts: Use the Live Editor to create interactive documents.
• To create a new live script, go to Home > New > Live Script.
• Example code in a live script:

% This is a live script example
x = linspace(0, 2*pi, 100);
y = sin(x);
plot(x, y);
title('Sine Wave');
xlabel('x');
ylabel('sin(x)');

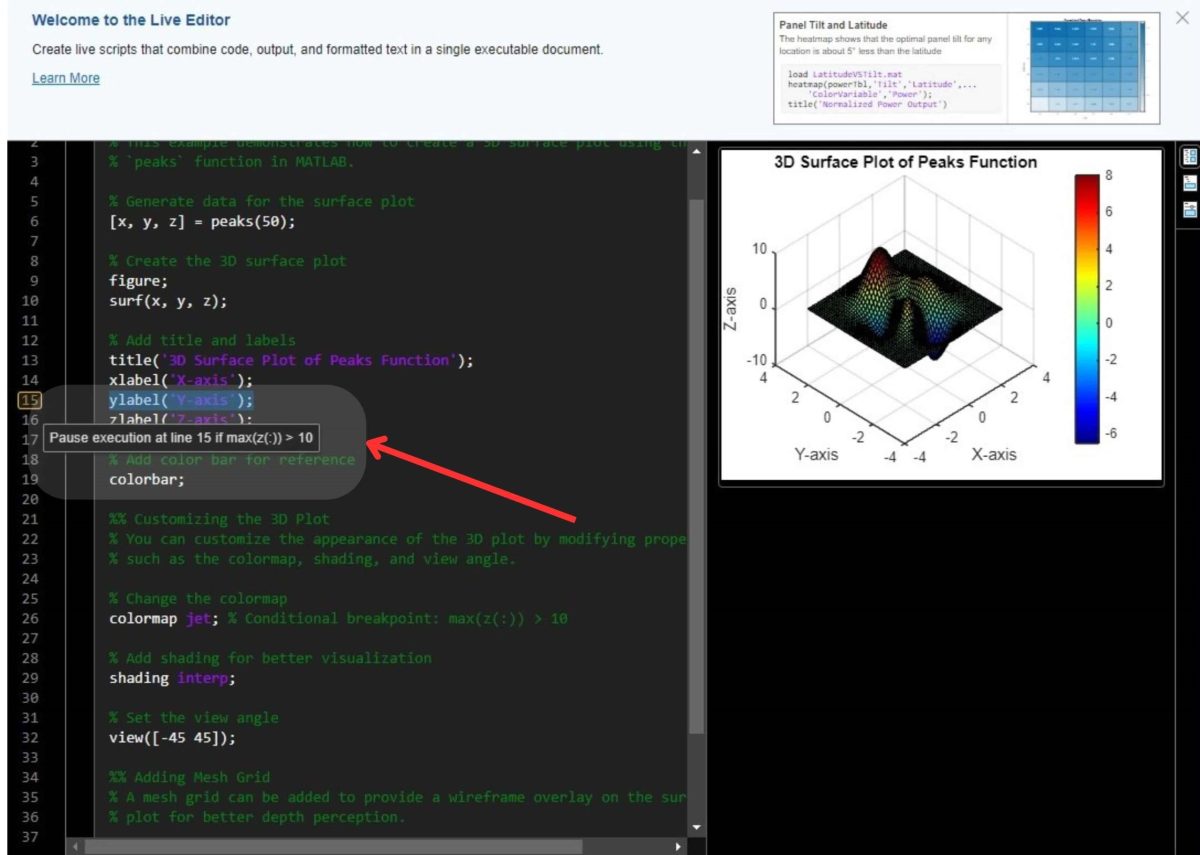

Debugging Tools

• Set Breakpoints: Use breakpoints to pause execution and inspect variables.
• Click in the margin next to the line number or use the dbstop command.

dbstop if error;  % Stops execution if an error occurs
dbstop at 5;      % Set breakpoint at line 5

Documentation and Help

• Access Help: Use the doc command to access documentation.
• Example:

doc plot;  % Opens documentation for the plot function

• Search Online: Utilize MATLAB’s extensive online resources and community forums for additional support.

Advantages of Environment Setup in MATLAB Language

Setting up your environment in MATLAB offers numerous advantages that significantly enhance your efficiency, productivity, and code quality. Here are the key benefits:

1. Increased Productivity

• Streamlined Workflow: When you customize your MATLAB environment, you streamline your workflow. This means you’ll spend less time on repetitive tasks and more time focusing on the critical aspects of your work.
• Quick Access to Tools: By setting up shortcuts and favorite tools in the Toolstrip, frequently used functions are always within reach. This saves you time and effort, allowing you to work more efficiently.

2. Enhanced Code Quality

• Consistent Setup: A well-configured environment ensures consistency in how your code is written, executed, and debugged. This leads to fewer errors and higher quality code.
• Effective Debugging: MATLAB’s debugger and diagnostic tools are invaluable for identifying and fixing issues promptly, which improves the reliability of your code.

3. Customization and Comfort

• Personalized Experience: Customizing the appearance and behavior of MATLAB to suit your preferences—such as themes, fonts, and keyboard shortcuts—makes the environment more comfortable to work in for long periods.
• Tailored Workflow: By setting up startup scripts and environment preferences, you can create a personalized workflow that matches your specific needs, enhancing your productivity.

4. Efficient Project Management

• Organized Workspace: Properly setting up the MATLAB Path and Current Folder helps you organize and manage multiple projects. This makes it easy to switch between projects and maintain a clean workspace.
• Version Control Integration: Integrating MATLAB with version control systems ensures all changes are tracked. This makes collaborative work more efficient and keeps your projects well-organized.

5. Improved Learning and Exploration

• Access to Documentation: With quick access to MATLAB’s comprehensive documentation, examples, and tutorials, you can learn new functions and features more effectively.
• Interactive Exploration: Using the Live Editor for interactive exploration of data and algorithms helps you better understand and visualize your work, speeding up the learning process.

6. Collaboration and Sharing

• Consistent Environment: A standardized setup means your code and projects can be easily shared and understood by collaborators, reducing environment-related issues.
• Live Scripts and Reports: Creating and sharing live scripts with embedded code, results, and visualizations makes collaboration and communication of your findings more effective.

7. Performance Optimization

• Resource Management: Efficiently managing computational resources by customizing the environment ensures your system runs optimally without unnecessary overheads.
• Specialized Tools: MATLAB’s specialized tools and apps for tasks like image processing and signal analysis can greatly enhance performance and efficiency, making your work smoother and faster.

8. Reduced Errors and Troubleshooting Time

• Proactive Error Checking: Setting up the Code Analyzer and other diagnostic tools helps you identify potential issues proactively, reducing the time you spend troubleshooting.
• Command History: Access to the Command History allows you to quickly reference and reuse previous commands, which helps minimize repetitive errors and speeds up your workflow.

9. Interfacing with Other Languages

MATLAB can interface with other programming languages, allowing for integration and extending functionality:

• C/C++: Call C/C++ functions from MATLAB or generate C code from MATLAB algorithms.
• Java: Use Java classes and methods directly in MATLAB.
• Python: Call Python functions and libraries from MATLAB.

By setting up your MATLAB environment effectively, you can utilize these advantages to create a more efficient, productive, and enjoyable coding experience. Whether you’re working on a complex project or learning new concepts, a well-configured MATLAB environment can make a significant difference. Happy coding!

Disadvantages of Setting Up Your MATLAB Environment

While setting up the environment in MATLAB has many benefits, there are also some downsides and challenges that users may face. Let’s go through these in more detail

1. Initial Time Investment

• Setup Time: Getting everything set up can take a lot of time, especially if you’re new to MATLAB. Figuring out how to customize your preferences, paths, and tools to fit your specific needs can be a bit of a hassle and requires significant effort.

2. Complexity for Beginners

• Steep Learning Curve: If you’re new to MATLAB, all the customization options can feel pretty overwhelming. It takes a while to get familiar with the interface and features, which can make setting up the environment effectively a bit challenging.
• Potential for Misconfiguration: If you don’t set things up correctly, you might run into problems like path conflicts, missing dependencies, or tools not working as expected. Troubleshooting these issues can be frustrating.

3. Maintenance Overhead

• Regular Updates: As your projects grow and you add new tools or libraries, you’ll need to update and maintain your environment setup. This ongoing maintenance can be a burden.
• Version Compatibility: Ensuring that different versions of MATLAB and various toolboxes work together smoothly can be tricky, especially if you’re working in a team where different members might be using different versions.

4. Resource Consumption

• System Resources: A highly customized MATLAB environment with lots of toolboxes and apps can use up a lot of your system’s resources, which might slow down your computer.
• Startup Time: If you’ve got large scripts or multiple toolboxes loading at startup, it can take MATLAB a long time to launch.

5. Cost

• Licensing Fees: MATLAB and its various toolboxes can be quite expensive. If you need an extensive setup with many specialized toolboxes, the costs can add up quickly, which might not be feasible for all users or organizations.

6. Collaborative Challenges

• Standardization Issues: In a team setting, personal setups can vary a lot, making it challenging to standardize the development environment. This can lead to inconsistencies and integration problems.
• Shared Environment Setup: Ensuring that everyone on the team has the same environment setup requires extra effort in creating documentation and setup instructions. This process can be time-consuming and prone to errors.
